The rapid development of advanced materials has significantly reshaped manufacturing requirements across multiple industries. Materials such as titanium alloys, carbon fiber composites, ceramics, hardened steels, tungsten carbide, and glass-based substrates are widely used in aerospace structures, semiconductor components, renewable energy equipment, and high-end tooling systems. However, these materials often present challenges including high hardness, brittleness, thermal sensitivity, and poor machinability. To address these challenges, manufacturers require machine tools capable of delivering exceptional structural rigidity, precise motion control, and stable process performance. The VTC-50M bridge-type machining center has been developed to meet these advanced manufacturing demands.
Unlike conventional machining centers that rely on moving-table configurations, the VTC-50M adopts a fixed worktable and moving bridge structure. This configuration minimizes the impact of inertia on heavy workpieces and ensures consistent positioning accuracy throughout the machining cycle. By maintaining the workpiece in a static position, the machine effectively reduces vibration transmission and thermal distortion, particularly during long-duration machining operations or heavy roughing processes. The bridge design distributes cutting forces evenly across the machine frame, providing superior stability and reliability when machining large or high-value components.
The mechanical structure of the VTC-50M is built upon an integral cast iron base and column system produced using advanced resin sand casting techniques. Multiple aging treatments are applied to eliminate internal stress and improve long-term stability. The crossbeam and spindle head assemblies are reinforced with dense rib structures, ensuring excellent stiffness during high-load cutting. This design supports both rough machining and fine finishing processes, enabling users to complete complex operations within a single setup while maintaining consistent dimensional accuracy.

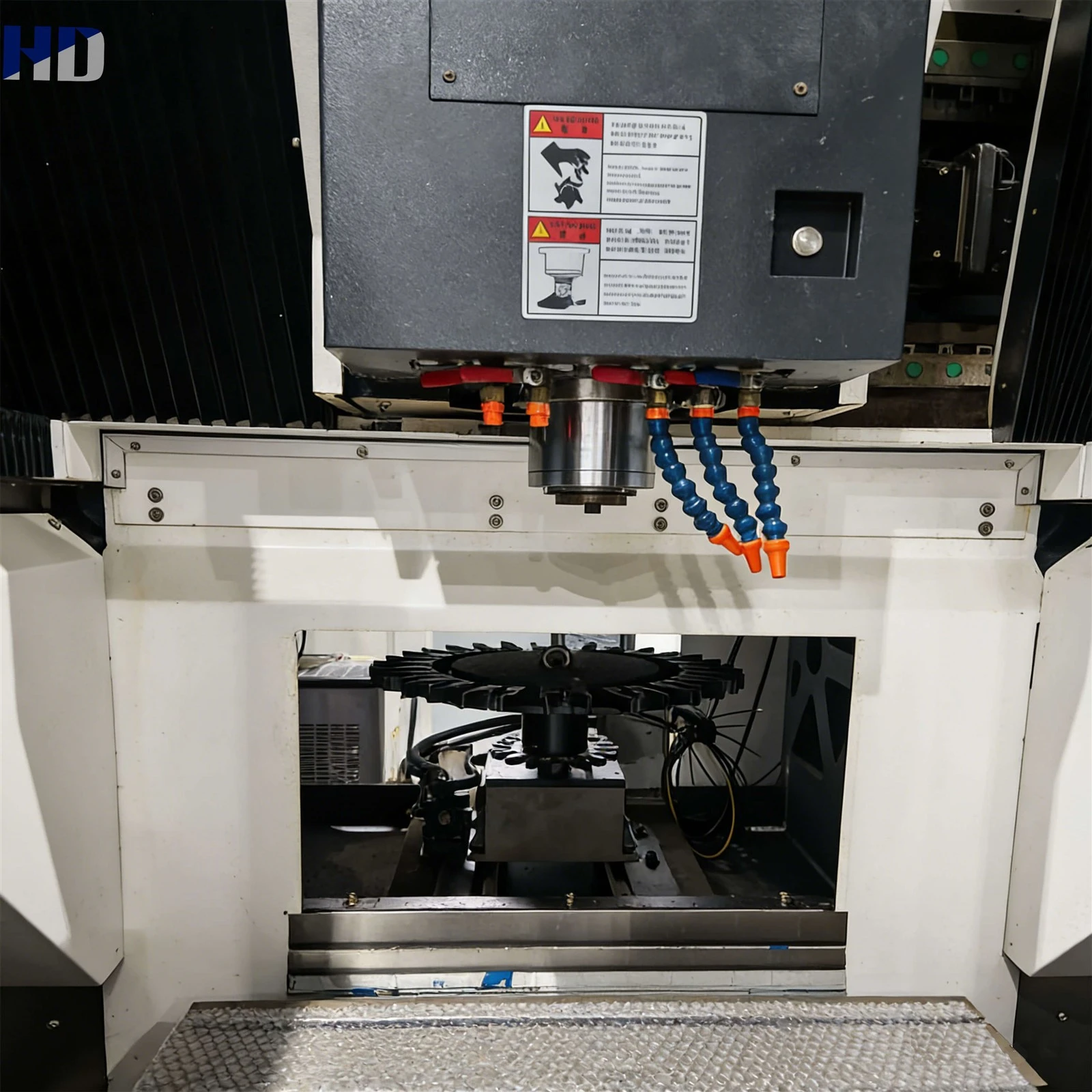

A defining technological advantage of the VTC-50M lies in its ultrasonic-assisted spindle system. The spindle integrates ultrasonic vibration directly into the rotating shaft, allowing controlled micro-amplitude oscillation at the tool tip. This innovative approach reduces cutting resistance, lowers machining temperature, and improves chip evacuation. As a result, surface finish quality is significantly enhanced, tool wear is minimized, and machining efficiency is increased. Ultrasonic-assisted machining is particularly effective when processing brittle materials, thin-walled parts, and micro-precision components where conventional cutting methods may lead to cracking, chipping, or deformation.
The motion system of the VTC-50M is equipped with high-precision linear guideways and preloaded ball screw drives on all axes. This ensures smooth movement, excellent dynamic response, and accurate positioning across the full working envelope. Advanced servo control technology enables precise contouring, interpolation, and synchronized axis movement, supporting complex three-dimensional surface machining. The machine's positioning and repeatability performance make it suitable for applications requiring tight tolerances and superior surface integrity.
In addition to its mechanical advantages, the VTC-50M integrates an intelligent CNC control platform that supports multi-axis linkage, real-time error compensation, tool life monitoring, and adaptive machining strategies. The system enables seamless integration with CAM software, facilitating efficient programming and process optimization. Operators benefit from intuitive interfaces, diagnostic functions, and remote monitoring capabilities that improve operational efficiency and reduce downtime.
Comprehensive protective enclosures and dust isolation systems ensure safe operation in environments involving abrasive materials or fine particulate debris. The sealed feed mechanisms and guided motion components prevent contamination, extending machine service life and reducing maintenance requirements. Automatic lubrication systems further enhance reliability and ensure consistent performance over extended production cycles.
The versatility of the VTC-50M bridge machining center allows it to serve a wide range of industries. In aerospace manufacturing, it is used for precision machining of turbine components, structural frames, and lightweight alloy parts. In semiconductor and electronics industries, it supports the production of ceramic substrates and precision housings. In renewable energy sectors, the machine contributes to the fabrication of critical components for wind turbines and power equipment. Tool and mold manufacturers also benefit from its capability to produce high-precision cavities and surface finishes.
By combining structural stability, ultrasonic machining technology, and intelligent automation, the VTC-50M offers manufacturers a reliable solution for improving production efficiency, enhancing product quality, and meeting evolving market demands. It represents a forward-looking investment for enterprises seeking to upgrade machining capabilities and maintain competitiveness in high-value manufacturing sectors.
