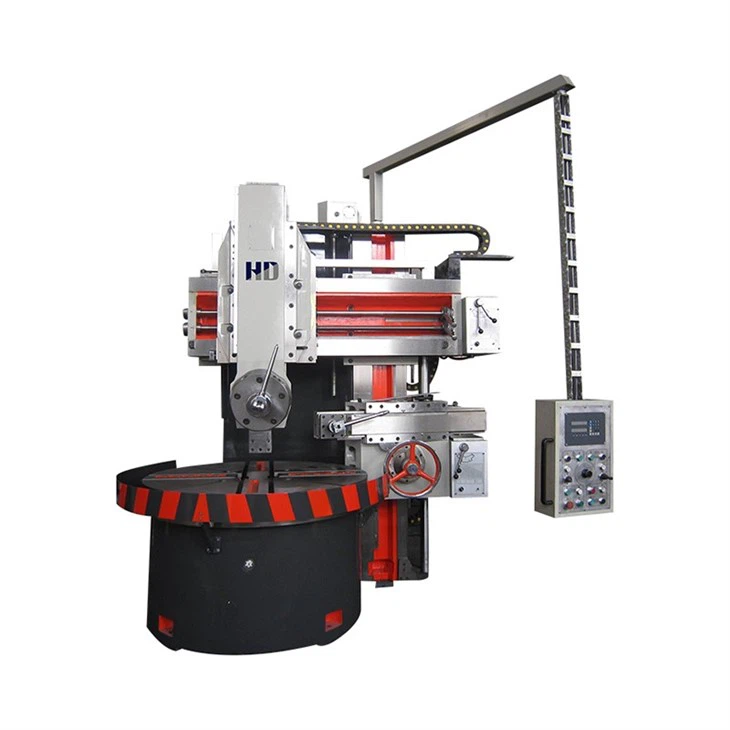

The Model C5112/C5116/C5120/C5123/C5126 Single Column Vertical Lathe is suitable for use with high-speed steel cutters, carbide cutters, and various high-performance tools. It is capable of performing rough and finish turning operations on internal and external cylindrical surfaces, conical surfaces, end faces, grooving, and more.
Specification Parameter
|
Specification |
Unit |
C5112 |
C5116 |
C5120 |
C5123 |
C5126 |
|
|
Max.cutting diameter of vertical tool post |
mm |
1250 |
1600 |
2000 |
2300 |
2600 |
|
|
Max.cutting diameter of side tool post |
mm |
1100 |
1400 |
1800 |
2000 |
2400 |
|
|
Max.cutting height |
mm |
1000 |
1000/1400 |
1250 |
1350 |
1600 |
|
|
Worktable |
diameter |
mm |
1000 |
1400 |
1800 |
2000 |
2250 |
|
max. loading |
t |
3.2 |
5 |
8 |
8 |
10 |
|
|
speed range |
rpm |
6.3-200 |
5-160 |
3.2-100 |
3.2-100 |
2-63 |
|
|
step range |
step |
16 |
16 |
16 |
16 |
16 |
|
|
max. torque |
kn. m |
17.5 |
25 |
25 |
25 |
35 |
|
|
Vertical tool post |
feeding range |
mm/min |
0.8-86 |
0.8-86 |
0.8-86 |
0.8-86 |
0.8-86 |
|
feed steps |
step |
12 |
12 |
12 |
12 |
12 |
|
|
cutting force |
kn |
20 |
25 |
25 |
25 |
25 |
|
|
vertical travel |
mm |
650 |
800/1000 |
800/1000 |
800/1000 |
1000 |
|
|
horizontal travel |
mm |
700 |
915 |
1200 |
1300 |
1500 |
|
|
swing angle |
° |
±30 |
±30 |
±30 |
±30 |
±30 |
|
|
Side tool post |
feed range |
mm/min |
0.8-86 |
0.8-86 |
0.8-86 |
0.8-86 |
0.8-86 |
|
cutting force |
kn |
20 |
20 |
20 |
20 |
20 |
|
|
vertical travel |
mm |
900 |
900 |
900 |
900 |
900 |
|
|
horizontal travel |
mm |
630 |
630 |
630 |
630 |
630 |
|
|
Vertical (side) turret rapid travel speed |
m/min |
1.8 |
1.8 |
1.55 |
1.55 |
1.55 |
|
|
Cross beam travel |
mm |
650 |
650/1050 |
850 |
1050 |
1250 |
|
|
Beam lifting speed |
mm/min |
350 |
350 |
350 |
350 |
320 |
|
|
Tool bar section size |
mm |
30*40 |
30*40 |
40*40 |
40*40 |
40*40 |
|
|
Feed motor power |
kw |
1.3/1.8 |
1.3/1.8 |
1.3/1.8 |
1.3/1.8 |
1.3/1.8 |
|
|
Main motor |
kw |
22 |
30 |
30 |
30 |
37 |
|
|
Machine weight |
t |
8.5 |
12.4/14.8 |
17 |
18 |
26/28 |
|
|
Overall dimension(L*W*H) |
mm |
2360*2280 *2800 |
2830*2670 *3010 |
3200*2800 *3250 |
3210*2850 *3300 |
3300*4000 *3500 |
|
Product Feature
The C51 series single-column vertical lathe incorporates advanced contemporary design and manufacturing technology. It is developed using CAD optimization methods, adheres to the latest national precision and factory rigidity standards, and integrates advanced functional components from both domestic and international sources.
This design enables strong cutting performance, high worktable load capacity, and exceptional dynamic and static rigidity. The machine ensures safe and reliable operation, long service life, and high processing efficiency, making it a high-tech mechatronic product ideal for demanding applications.
Key Features of the Tool Post
The vertical tool post features a three-layer structure, consisting of:
Beam Slide
Revolving Slide
Ram
The crossbeam sliding seat and the revolving sliding seat are made of high-strength, low-stress cast iron, while the ram is constructed from ductile iron. The sliding guide surface of the tool post is precision-scraped and lined with a soft guide belt. Additionally, all ball screw support bearings are combination bearings, ensuring precision, durability, and smooth operation.
