Drilling and Milling Machine

Your Professional Drilling And Milling Machine Supplier

Dalian Haidi Machinery Co., Ltd. is a professional manufacturer specializing in the research, development, and production of various machine tools, including single-column vertical lathes, double-column vertical lathes, horizontal lathes, boring-milling machines, machining centers, and gear hobbing machines. The products developed by our company offer a wide range of models, comprehensive specifications, advanced technology, and superior quality.

Professional Team
Our company has a workforce of over 200 employees, including 11 senior engineers, 8 senior managerial personnel, and more than 160 technical workers.

Rich Experience
With over 20 years of production experience, we have established ourselves as a leading manufacturer in the field of vertical lathes, horizontal lathes, machining centers, boring machines, milling machines, drilling machines, slotting machines, and gear hobbing machines.

Production Capacity
We operate our own casting factory, which has an annual output capacity exceeding 20,000 tons. Our company is recognized as the largest enterprise specializing in machine tool casting in southern Liaoning Province.

Sales Market
Our products have been exported to countries such as Australia, Chile, Peru, Turkey, Russia, Indonesia, Saudi Arabia, the United States, Belarus, Argentina, Singapore, and many others, covering approximately 60 countries worldwide.

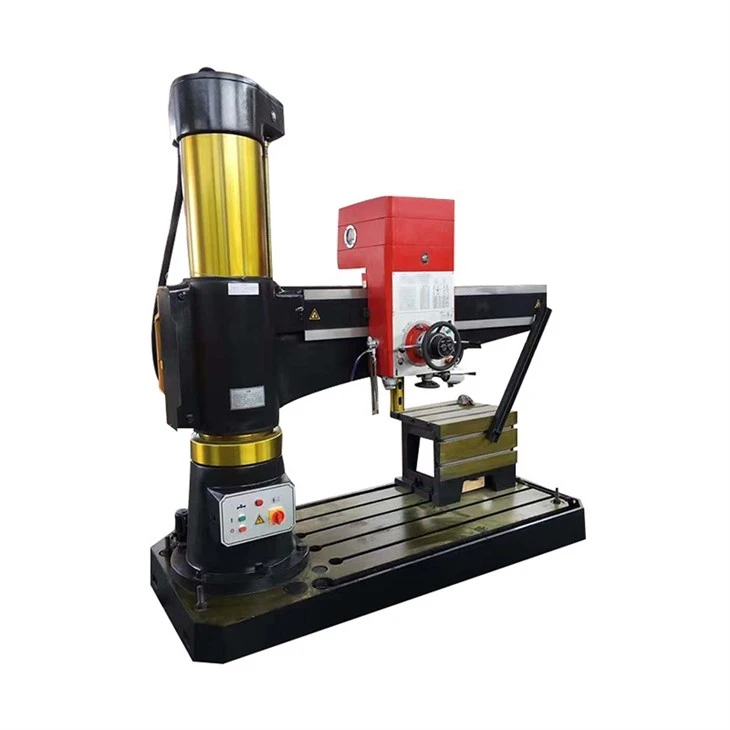

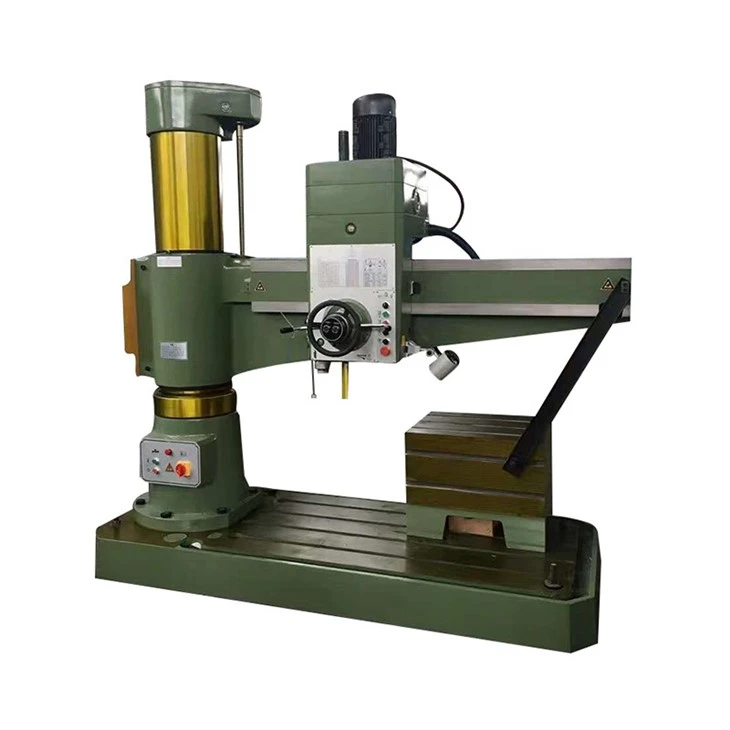

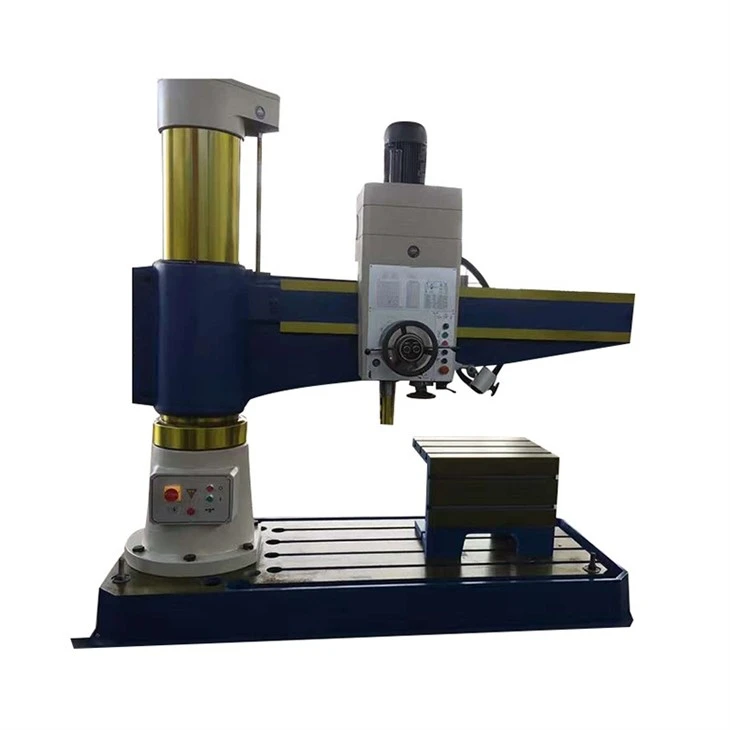

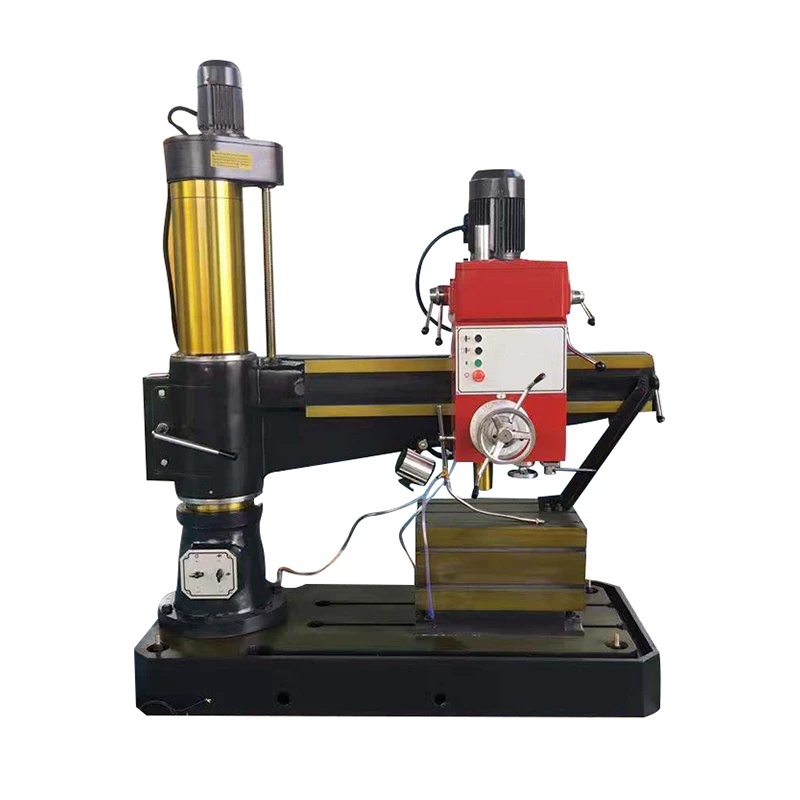

Radial Drilling Machine
Model Z3040/ Z3050/ Z3080/ Z30100/ Z30125 drilling machine is with reliable foundry and strict quality control of casting. Precision machining process of key components. Perfect features with...
read more

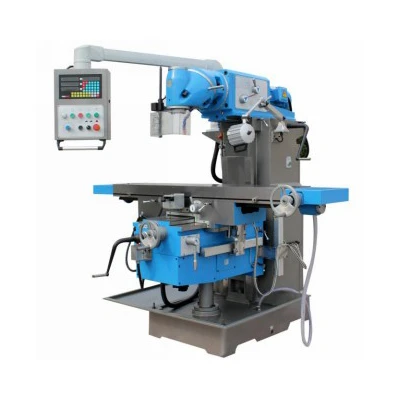

Universal Milling Machine
Model XL6230 universal milling machine has a wide application for single-piece or small batch production in manufacturing, instruments, construction, maintenance and repair workshops and so like...
read more

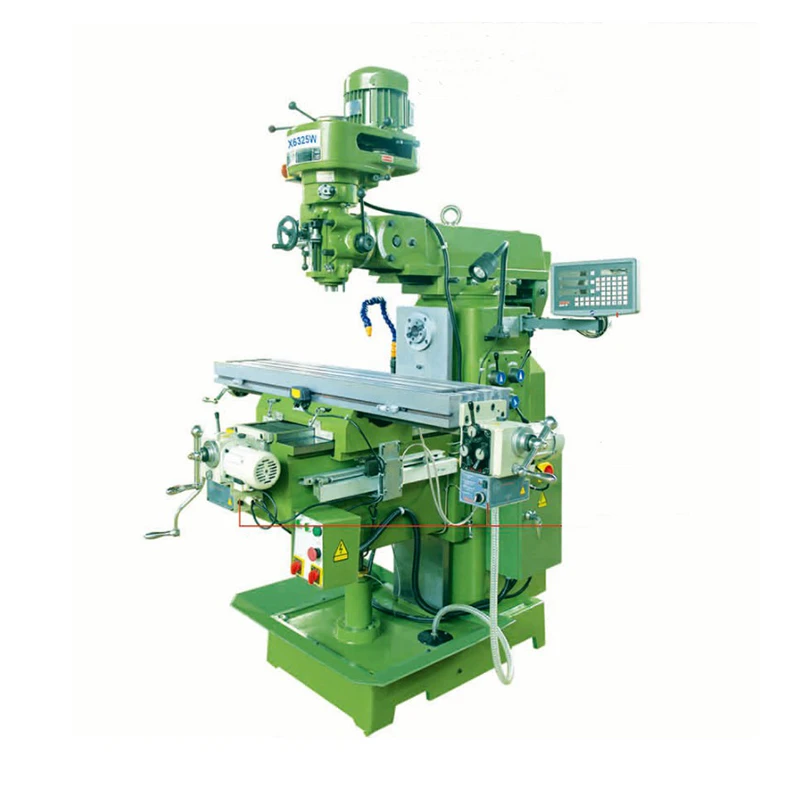

Turret Milling Machine
Model XU6325W/ XU6330W/ XU6332W turret milling machine can be widely used for machining key slots, slots, drilling, reaming, holes and so on at any Angle of plane and inclined plane.
The...
read more

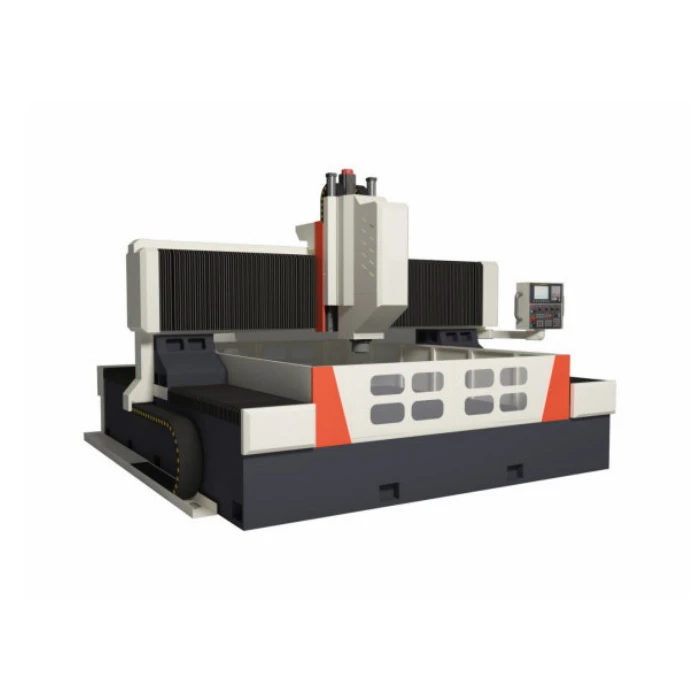

CNC Drilling and Milling Machine
Model GK1010/ GK1616/ GK1620/ GK1625/ GK2020/ GK2525/ GK3030 drilling milling machine is mainly used for efficient drilling of flange, disc, ring, plate and other workpiece thickness within the...
read more

Parameter

Specification		GK1010	GK1616	GK1620	GK1625	GK2020	GK2525	GK3030
Machining size	L*W (mm)	1000*1000	1600*1600	1600*2000	1600*2500	2000*2000	2500*2500	3000*3000
Drilling power head	Spindle taper	BT50	BT50	BT50	BT50	BT50	BT50	BT50
	Drilling dia.(mm)	1-60	1-80	1-80	1-80	1-80	1-80	1-80
	Tapping diameter (mm)	M3-M20	M3-M30	M3-M30	M3-M30	M3-M35	M3-M35	M3-M35
	Spindle speed (r/min)	30~3000	30~3000	30~3000	30~3000	30~3000	30~3000	30~3000
	Main motor power (kw)	11/15	15/22	15/22	15/22	18.5/22	22/30	22/30
	Spindle lower end to table (mm)	200-600	200-600	200-600	200-600	200-600	200-600	200-600
X/Y/Z	3-axis positioning accuracy(mm)	±0.01/1000	±0.01/1000	±0.01/1000	±0.01/1000	±0.01/1000	±0.01/1000	±0.01
Weight(approx.)(t)		5	11.5	13	14.5	13.5	18	28

Types of Drilling And Milling Machine

The drilling and milling machines produced by our company mainly include the following types:

Radial Drilling Machine

Precision machining process of key components. Perfect features with reliable accuracy. Economical cutting and endurable lifetime. Main functions are including drilling, expanding drilling, reaming, boring, spot facing, tapping and others.

Turret Milling Machine

The spindle of turret milling machine can rotate at high speed and wide range. The spindle needle can be automatically fed. Horizontal milling 12 variable speed can be changed according to machining requirements.

CNC Drilling And Milling Machine

CNC drilling milling machine is mainly used for efficient drilling of flange, disc, ring, plate and other workpiece thickness within the effective range. It can drill through hole and blind hole on single material parts and composite materials.

Advantages of Drilling And Milling Machine

Increased Productivity

Drilling and milling machines can help to increase productivity as they are able to perform multiple operations in a single setup. This means that instead of having to set up multiple machines to perform different operations, one machine can be used to perform all of the necessary operations. This can save a lot of time and effort, as well as increase productivity.

Increased Accuracy

Drilling and milling machines can also help to increase accuracy as they are able to produce parts that are more precise than those produced by other methods. This is because drilling and milling machines can cut material more accurately than other methods, such as hand tools or power tools. Additionally, drilling and milling machines can be fitted with various attachments that can further improve accuracy.

Increased Flexibility

Another advantage of drilling and milling machines is that they are very versatile and flexible. They can be used to create a wide variety of parts, from small components to large components. Additionally, drilling and milling machines can be fitted with various attachments that allow them to perform different operations, such as drilling, tapping, and reaming.

Reduced Waste

Another advantage of drilling and milling machines is that they can help to reduce waste. This is because when parts are milled correctly, there is very little material waste. Additionally, drilling and milling machines can be fitted with special attachments that allow for the reuse of waste material.

Applications of Drilling And Milling Machine

Surface Milling

Used for producing flat surfaces or finishes on a workpiece.

Slot Cutting

Ideal for cutting slots in parts, including keyways and grooves.

Drilling and Boring

Milling machines are frequently used to drill holes, bore internal diameters, and produce threaded holes.

Precision Shaping

Ideal for creating detailed, complex parts or contours with high precision.

Keyway Milling

Often used for milling keyways for shafts and gears in mechanical assemblies.

Gear Cutting

Milling machines are essential for creating gears with high precision.

Safety Precautions for Drilling And Milling Machine Operation

Must obtain basic shop safety training and equipment-specific training before using this machine. Must wear appropriate PPE and follow shop rules.
Keep all guards in place while operating the machine.
While operating the milling machine allow no one else to touch it.
Keep hands away from moving cutting tools.
Do not make measurements of stock while the milling machine spindle is rotating.
Do not allow large quantities of chips to accumulate around the workpiece. After stopping the machine, and moving the workpiece as far away from the tool as possible, use a brush or paper towel to remove excess chips from the part being machined.
Always use cutters that are sharp and in good condition.
Use paper towel or Kevlar gloves to handle sharp cutting tools.
Cutting tools must be securely fastened in the mill spindle, with the proper accessory.
Make sure the cutting tool is clear of the workpiece before starting the machine.
Make sure cutter is rotating in the proper direction before cutting material.
Do not power machine to tighten or loosen cutting bits or tools.
Workpieces and stock must be rigidly fastened to the mill table with clamps, a vise, or special fixtures.
Use appropriate speeds and feeds for the type and size of cutter being used and the material being machined. Consult instrument maker for assistance.
Always use the proper cutting fluids for the material being cut.
Do not place anything on the milling machine table, such as wrenches, or precision tools.
Always stay at the machine while it is running.
Use the milling machine spindle brake to stop the spindle after the power has been turned off.
At the end of your work on the mill, when cleaning the machine table and vise, remove cutter from spindle to avoid cutting yourself.
After brushing chips off, wipe off excess oils and residue with paper towel.

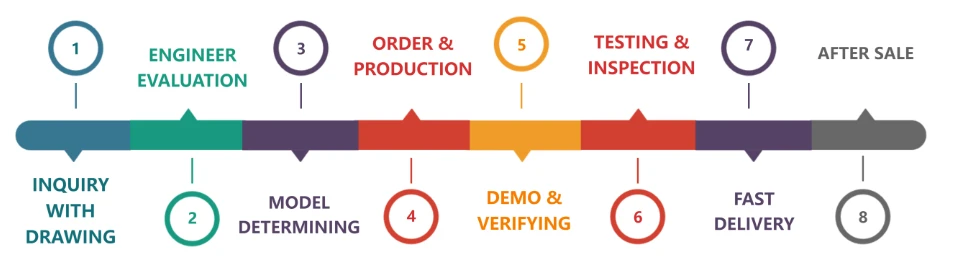

Ordering Process

productcate-958-266

Packaging and Shipping

Packaging	The machines standard will be packed in wood case. If the machine is very heavy, we will reinforce the box with iron frame.
Shipping	Shipping by sea, by air, by express are acceptable. According to your requirements.

Our Factory

Certificate

productcate-1-1

FAQ

Q: What is the basic knowledge of milling machine?

A: A milling machine is an industrial machine tool that creates a part by removing material from a stationary workpiece with rotary cutting tools. A milling machine is the main type of equipment used for milling, a subtractive manufacturing process, that can be controlled manually or with Computer Numerical Control (CNC).

Q: What to remember when using a milling machine?

A: Never run the machine faster than the correct cutting speed. Make sure that the machine is fully stopped before taking any measurements. Always use cutters which are sharp and in good condition. Don't place anything on the milling machine table such as wrenches, hammers, or tools.

Q: Can a milling machine do drilling?

A: While milling machines can create holes, they are not as efficient or precise in hole drilling compared to specialized drilling machines.

Q: What should you always before you turn on the milling machine?

A: Cutting tools must be securely fastened in the mill spindle, with the proper accessory. Make sure the cutting tool is clear of the workpiece before starting the machine. Make sure cutter is rotating in the proper direction before cutting material.

Q: What are the fundamentals of milling machine?

A: Milling machines are comprised of a spindle that holds a cutting tool and Workholding that holds the components. The spindle rotates and cuts the paths, while the Workholding holds the part. Our setup in this video features a large vise, but you can also have smaller vises that hold your part.

Q: How to inspect a milling machine?

A: Overall machine condition
Spindle and tooling:
Table and workholding
Axis movement
Way covers and seals
Coolant system
Electrical components
Safety features

As one of the leading drilling and milling machine manufacturers and suppliers in China, we warmly welcome you to buy cheap drilling and milling machine made in China here from our factory. All our products are with high quality and low price.
