Floor Type Boring Machine

Your Professional Floor Type Boring Machine Supplier

Dalian Haidi Machinery Co., Ltd. is a professional manufacturer specializing in the research, development, and production of various machine tools, including single-column vertical lathes, double-column vertical lathes, horizontal lathes, boring-milling machines, machining centers, and gear hobbing machines. The products developed by our company offer a wide range of models, comprehensive specifications, advanced technology, and superior quality.

Professional Team
Our company has a workforce of over 200 employees, including 11 senior engineers, 8 senior managerial personnel, and more than 160 technical workers.

Rich Experience
With over 20 years of production experience, we have established ourselves as a leading manufacturer in the field of vertical lathes, horizontal lathes, machining centers, boring machines, milling machines, drilling machines, slotting machines, and gear hobbing machines.

Production Capacity
We operate our own casting factory, which has an annual output capacity exceeding 20,000 tons. Our company is recognized as the largest enterprise specializing in machine tool casting in southern Liaoning Province.

Sales Market
Our products have been exported to countries such as Australia, Chile, Peru, Turkey, Russia, Indonesia, Saudi Arabia, the United States, Belarus, Argentina, Singapore, and many others, covering approximately 60 countries worldwide.

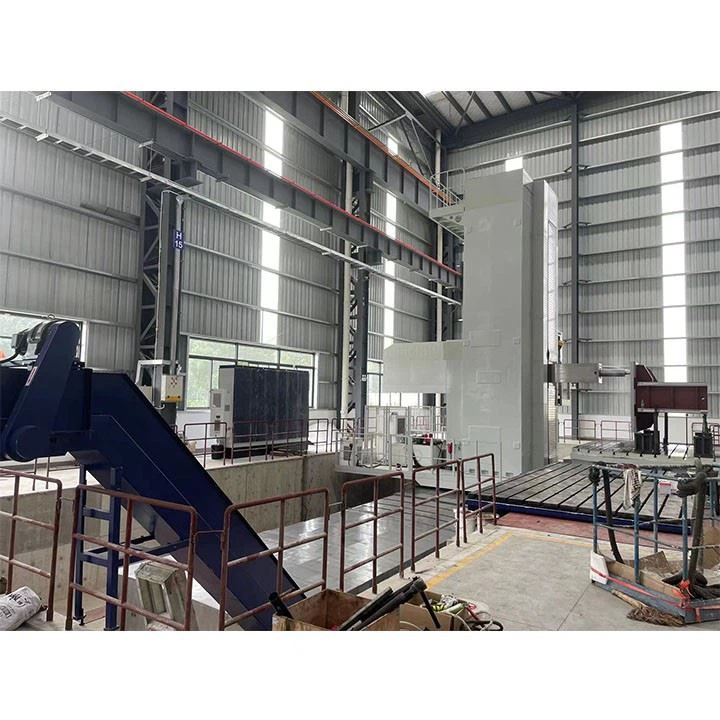

CNC Floor Type Boring And Milling Machine
E-FORCE 160RH/200RH is a high-precision CNC floor-type boring and milling machine developed by SMTCL, designed for medium-to-large workpiece processing. With its single-column side-hanging box...
read more

Parameter

Items		Unit		E - Force160RH	E - Force200RH
Spindle	Spindle diameter	Mm		160	200
	Milling spindle diameter	Mm		260	320
	Shank			JT50/BT50	JT60/BT60
	Spindle speed	R/min		10 - 1500(2000)	10 - 1250
	Main motor power	Kw		58/69	85/102
	Maximum spindle torque	Nm		6300/7600	8400/10000
	Ram cross - section	Mm		480脳540	480×540(Column travel 7000mm)
Travel	X axis	Mm		6000(increase per 2000)	8000(increase per 2000)
	Y axis	Mm		3000/4000/5000	4000/5000/6000/7000
	Z axis	Mm		1200
	W axis	Mm
Feed	Feed speed	X axis	Mm/min	1 - 10000
		Y axis	Mm/min	1 - 8000
		Z axis	Mm/min	1 - 6000
		W axis	Mm/min	1 - 6000
	Rapid speed	X axis	Mm/min	10000
		Y axis	Mm/min	8000
		Z axis	Mm/min	6000
		W axis	Mm/min	6000
Positioning accuracy	Implementation Standards GB/T 5289.3 - 2006	X axis	Mm	0.012/1000(Standard grating)
		Y axis	Mm	0.012/1000(Standard grating)
		Z axis	Mm	0.025/0.012(Grating)
		W axis	Mm	0.025/0.012(Magnetic grid)
Repeatability	Implementation Standards GB/T 5289.3 - 2006	X axis	Mm	0.01
		Y axis	Mm	0.01
		Z axis	Mm	0.01
		W axis	Mm	0.01

Advantages of Floor Type Boring Machine

Handling Large Workpieces
Floor type boring machines excel at handling very large and heavy workpieces, which may be challenging for floor type boring machines. This makes them particularly useful in industries like shipbuilding, aerospace, and energy, where large-scale components are the norm.

Precision and Accuracy
These mills offer high precision and accuracy in machining tasks. The vertical orientation of the spindle allows for stability and minimizes vibrations during cutting, which contributes to achieving tight tolerances and fine finishes on workpieces.

Versatility in Machining
Floor type boring machines are versatile machines capable of performing a wide variety of machining tasks including boring, turning, facing, threading, and cutting tapers and contours. This versatility makes them valuable assets in workshops, catering to diverse machining needs.

Accessibility and Operator Visibility
The design of floor type boring machines offers better accessibility and visibility to the operator. The operator can easily view and access the workpiece, which facilitates monitoring of the machining process and ensures better quality control.

Efficiency and Time Savings
Time is money, gentlemen. With rapid cutting speeds and automation options, these mills are not just efficient; they’re a veritable goldmine of productivity.

Applications of Floor Type Boring Machine

CNC Floor Type Boring And Milling Machine

Energy Equipment

These machines play a crucial role in manufacturing components for wind turbines and nuclear power plant bases. The ability to handle massive parts with extreme precision ensures the reliability and safety of critical energy infrastructure.

Heavy Machinery

In the production of large gearboxes, machine frames, and other heavy-duty mechanical assemblies, floor type boring machines provide the strength and accuracy required. Their capacity to process oversized components without compromising precision supports the demanding standards of heavy machinery manufacturing.

Shipbuilding and Rail Transportation

The construction of ship hull frames, decks, and various rail vehicle components often involves large, irregularly shaped parts. The flexible workpiece positioning and multi-axis machining capabilities of these machines enable efficient drilling, milling, and boring operations that meet the unique demands of marine and rail industries.

Safety Precautions for Operating Floor Type Boring Machines

Wear PPE

Always wear appropriate personal protective equipment, including safety glasses and ear protection.

Avoid Loose Clothing and Jewelry

Loose clothing, jewelry, or long hair can get caught in the machine, leading to serious injuries.

Use Guards and Shields

Ensure that all guards and shields are in place to protect against flying debris.

Stay Alert

Remain vigilant and focused on the task at hand, avoiding distractions.

Keep Workspace Clean

Maintain a clean and organized workspace to prevent slips, trips, and falls.

Maintenance of Floor Type Boring Machine

01/

Regular Lubrication: Keep all moving parts well-lubricated to reduce wear and tear.

02/

Timely Replacement of Worn Parts: Regularly inspect and promptly replace any worn or damaged components.

03/

Operator Training: Ensure that operators are well-trained and follow best practices to avoid unnecessary strain on the machine.

04/

Use Quality Cutting Tools: Invest in high-quality cutting tools and replace them before they become too worn.

05/

Avoid Overloading: Do not exceed the machine’s weight and capacity limits.

06/

Keep it Clean: Regular cleaning to remove dust, debris, and chips will prevent buildup and potential damage.

Packaging and Shipping

Packaging	The machines standard will be packed in wood case. If the machine is very heavy, we will reinforce the box with iron frame.
Shipping	Shipping by sea, by air, by express are acceptable. According to your requirements.

Our Factory

Certificate

productcate-1-1

FAQ

Q: What is the principle of a boring machine?

A: The boring process involves carefully placing the machine's head into the already drilled or cast hole. The device then starts to widen the hole by slowly scraping away portions of the inner wall. The boring tools are similar to those of lathes used in turning and milling machines.

Q: What is the process of boring machine?

A: The process involves mounting the machine onto the workpiece and rotating the cutting tool to remove material, creating or repairing cylindrical holes. The machines come equipped with various features, such as a mounting system and a bore welding system, to ensure stability and accuracy during the operation.

Q: What is the tolerance of a boring machine?

A: Tolerances are essential in boring operations to achieve accurate alignment, surface finishes, and hole diameters. Tolerances can range from standard to ultra-fine, depending on the application, especially in industries like aerospace or medical manufacturing.

Q: What key components make up a floor type boring machine?

A: Core components include a heavy-duty bed (fixed or movable), a spindle headstock (houses the rotating spindle for cutting tools), a column (supports the headstock and enables vertical movement), a saddle (moves horizontally along the bed), and a floor plate (supports the workpiece). Advanced models may include CNC controls and rotary tables.

Q: What is the maximum workpiece size a floor type boring machine can handle?

A: This varies by model, but large floor type boring machines can accommodate workpieces up to 10 meters in length, 5 meters in width, and weighing 50+ tons. Smaller models may handle parts up to 2–3 meters, making them versatile across industries.

Q: How do floor type boring machines handle heavy workpiece clamping?

A: Workpieces are clamped to the floor plate using T-slots, bolts, or custom fixtures (e.g., angle plates, v-blocks). The floor plate is often made of high-strength cast iron with precision-machined surfaces to ensure stability. Some machines also use hydraulic or pneumatic clamps for secure, quick fastening.
