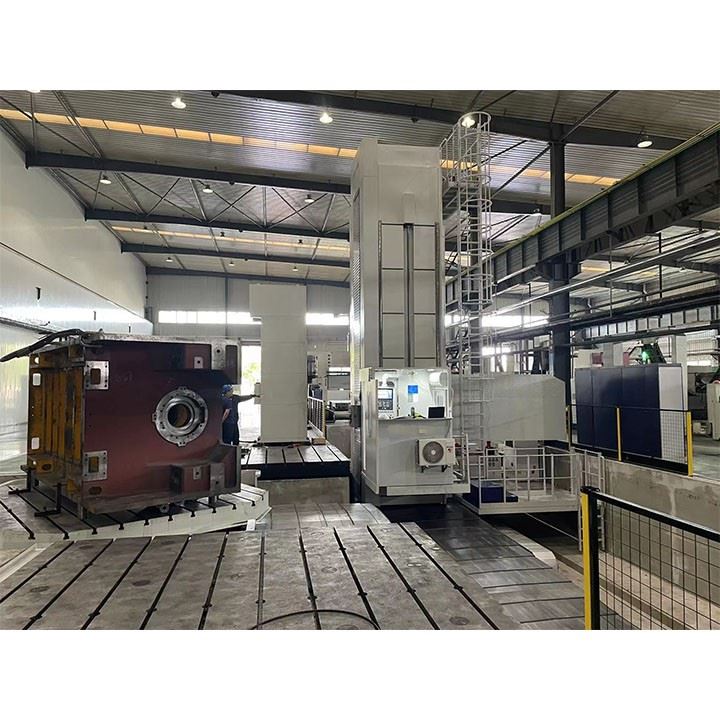

CNC Floor Type Boring & Milling Machine E-FORCE 160RH/200RH
--High Efficiency Heavy-Duty Machining Solution for Wind Power, Energy & Marine IndustriesE-FORCE 160RH/200RH is a high-precision CNC floor-type boring and milling machine developed by SMTCL, designed for medium-to-large workpiece processing. With its single-column side-hanging box structure and X/Y/Z/W four-axis linkage, it excels in milling, boring, drilling, and tapping for complex parts in wind power, energy machinery, gearboxes, and marine applications.
1. Powerful Power Output
It is equipped with a high-power spindle system and an independent self-made gearbox, enabling three-speed shifting of high, medium, and low. The large spindle power and high torque allow it to easily handle heavy-duty cutting tasks of various difficult-to-machine materials, providing a solid guarantee for efficient machining.
2. Advanced Guideway Technology
3. Robust Structural Design
The basic components are made of high-strength cast iron materials and cast using the resin sand process, which greatly reduces the residual stress of the castings and ensures the long-term accuracy stability of the machine tool. The ram is made of high-strength ductile iron with a reasonable internal structure design, featuring excellent bending stiffness and capable of withstanding large cutting forces.
Industry Applications
* Wind Power Industry: Aiming at the special machining requirements of wind power equipment, this machine tool can precisely machine key components such as wind turbine hubs, ensuring machining accuracy and quality to meet the high standards of the industry.
* Energy Industry: It is suitable for the machining of various large parts in energy machinery, such as gas turbine cylinders and
nuclear power pressure vessels, providing reliable machining support for the development of the energy industry.
* Reducer Industry: It can efficiently and precisely machine reducer boxes, ensuring the assembly accuracy and operating
performance of reducers.
* General Machinery Industry: In the field of general machinery, this machine tool can flexibly handle the machining of parts
with various complex shapes and precision requirements, providing a comprehensive solution for general machinery manufacturing.
Intelligent Configuration
It is standardly equipped with an advanced CNC system, supporting multi-axis linkage and related functions, and is compatible with direct programming of various CAM software, making operation simple and efficient. Intelligent devices such as a laser tool setter and a spindle vibration monitoring system can also be optionally configured to realize real-time monitoring and intelligent compensation of the machining process, further improving machining efficiency and quality.
| Items | Unit | E - Force160RH | E - Force200RH | ||
| spindle | Spindle diameter | mm | 160 | 200 | |
| Milling spindle diameter | mm | 260 | 320 | ||
| Shank | JT50/BT50 | JT60/BT60 | |||
| Spindle speed | r/min | 10 - 1500(2000) | 10 - 1250 | ||
| Main motor power | kW | 58/69 | 85/102 | ||
| Maximum spindle torque | Nm | 6300/7600 | 8400/10000 | ||
| Ram cross - section | mm | 480×540 | 480×540(Column travel 7000mm) | ||
| Travel | X axis | mm | 6000(increase per 2000) | 8000(increase per 2000) | |
| Y axis | mm | 3000/4000/5000 | 4000/5000/6000/7000 | ||
| Z axis | mm | 1200 | |||
| W axis | mm | ||||
| Feed | Feed speed | X axis | mm/min | 1 - 10000 | |
| Y axis | mm/min | 1 - 8000 | |||
| Z axis | mm/min | 1 - 6000 | |||
| W axis | mm/min | 1 - 6000 | |||
| Rapid speed | X axis | mm/min | 10000 | ||
| Y axis | mm/min | 8000 | |||
| Z axis | mm/min | 6000 | |||
| W axis | mm/min | 6000 | |||
| Positioning accuracy | Implementation Standards GB/T 5289.3 - 2006 | X axis | mm | 0.012/1000(Standard grating) | |
| Y axis | mm | 0.012/1000(Standard grating) | |||
| Z axis | mm | 0.025/0.012(Grating) | |||
| W axis | mm | 0.025/0.012(Magnetic grid) | |||
| Repeatability | Implementation Standards GB/T 5289.3 - 2006 | X axis | mm | 0.01 | |
| Y axis | mm | 0.01 | |||
| Z axis | mm | 0.01 | |||
| W axis | mm | 0.01 | |||
