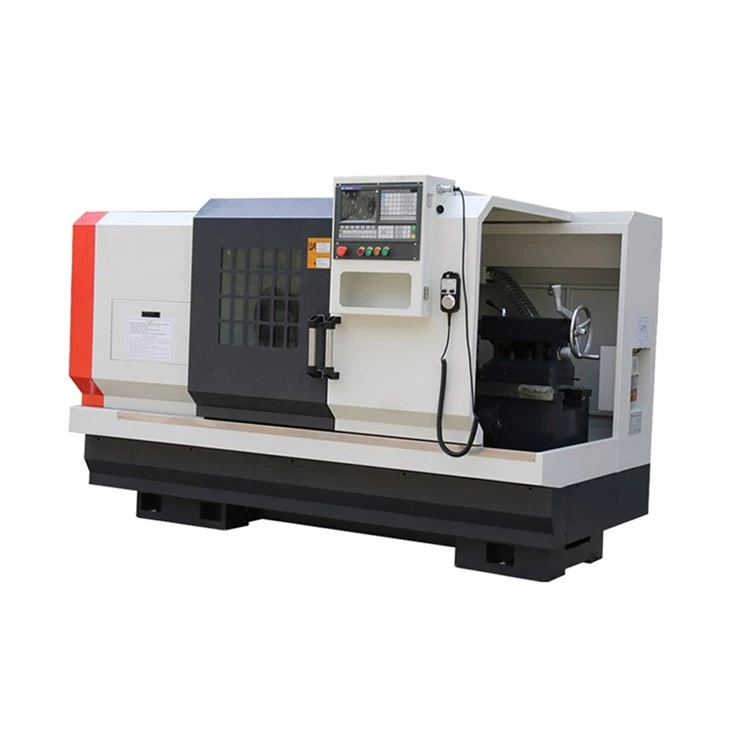

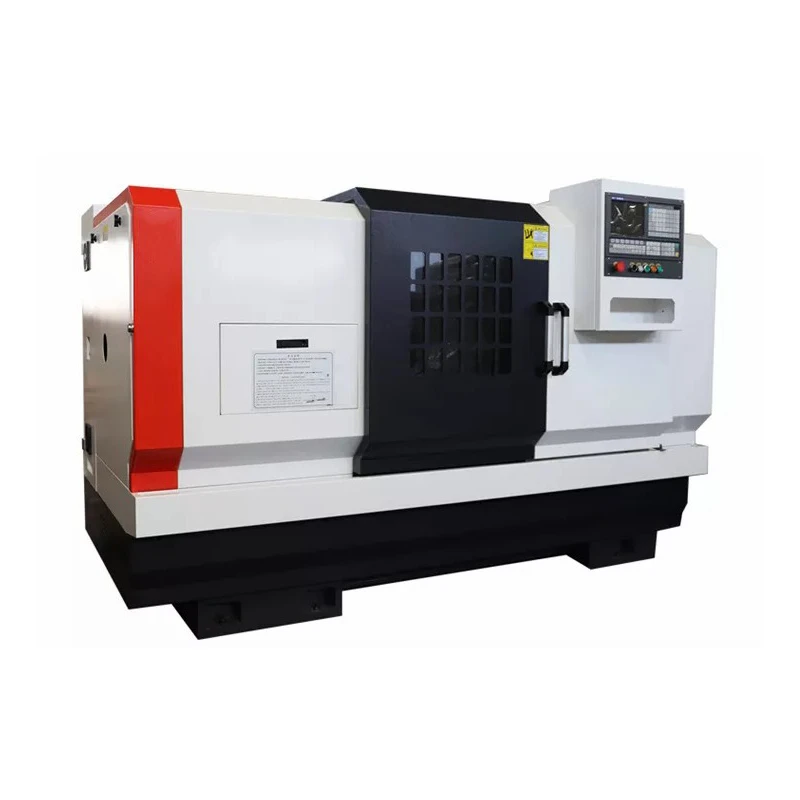

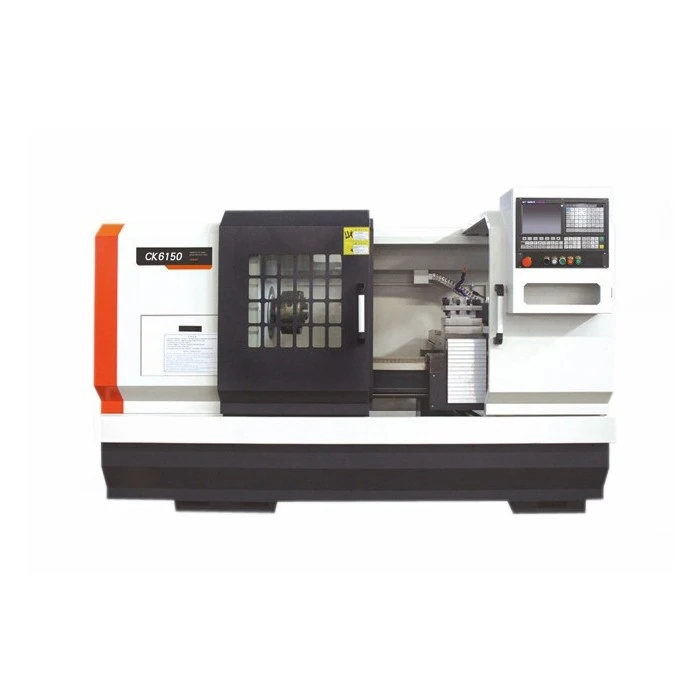

Model CK6140/ CK6150/ CK6160/ CK6163/ CK6180/ CK61100/ CK61125 flat bed CNC lathe is made of high-strength cast iron, added with special materials of copper and chromium, which effectively improves the wear resistance and stability of the machine tool.

Specification Parameter

Specification	Unit	CK6140	CK6150	CK6160
Swing over bed	mm	400	500	600
Swing over cross slide	mm	220	250	395
Max. turning diameter	mm	400	500	600
Max. workpiece length	mm	550/750	1000/1500/2000	1000/1500/2000
Max. turning length	mm	420/620(chuck)	850/1350/1850	850/1350/1850
Spindle nose		A2-6/A2-8	A2-8/A2-11	A2-8/A2-11
Spindle bore diameter	mm	48/82	82/130	82/130
Taper of spindle hole	mm	Collet / Metric 90	Metric 90/ Metric 140	Metric 90/ Metric 140
Spindle speed range	r/min	150-2500/150-1800	150-1800/150-800	150-1800/150-800
Spindle shift mode		Stepless	Stepless	Stepless
Spindle motor	kw	5.5	7.5	7.5
Chuck type		Collet/ manual chuck	Manual chuck	Manual chuck
Chuck size	Inch	8	10/15	10/15
X/Z rapid traverse	m/min	X:6 Z:8	X:6 Z:8	X:6 Z:8
X axis travel	mm	280	280	320
Z axis travel	mm	550/750	1000/1500/2000	1000/1500/2000
Guide way type		Hard rail	Hard rail	Hard rail
Capacity of turret		4	4	4
Tailstock sleeve diameter	mm	60	75	75
Quill traverse	mm	100	150	150
Quill taper		MT4	MT5	MT5
Machine dimension	mm	2000/220016001700	2650/3250/375017001820	2650/3250/375017001820
Net weight	kg	1900/2200	2700/3100/3300	2800/3200/3400

Item	Unit	CK6163	CK6180	CK61100	CK61125
Max. swing over bed diameter	mm	Φ630	Φ800	Φ1000	Φ1250
Max. swing over slide diameter	mm	Φ350	Φ480	Φ620	Φ870
Max. workpiece length	mm	1000/1500/2000/3000	1500/2000/3000/5000
Max. turning length	mm	850/1350/1850/2850	1350/1850/2850/4850
Distance between spindle center to guide	mm	315	400	500	625
Distance between spindle center to ground	mm	1145	1130	1150	1275
Bed guide width	mm	550	600	755	755
Spindle through hole diameter	mm	104	104	130	130
Spindle nose		C11/A211	C11/A211	A2-15	A2-15
Spindle speed range	r/min	30～90; 70～200; 130～380; 350～1000	30～90; 70～200; 130～380; 350～1000	10～32; 30～60; 50～120; 110～300	10～32; 30～60; 50～120; 110～300
Spindle speed step		4 gears,stepless
Gear shift		Manual/Auto	Manual/Auto	Manual	Manual
Main servo motor	kw	11kw	11kw	22kw	22kw
Tailstock sleeve diameter	mm	φ100	φ100	φ160	φ160
Tailstock sleeve travel	mm	250	250	300	300
Tailstock sleeve hole taper		Morse 5	Morse 6	Morse 6	Morse 6
Electric tool post	type	Vertical four station	Vertical four station	Vertical four station	Vertical four station
	tool changing time	3.6S	3.6S	3.6S	3.6S
	size	250*250	250*250	300*300	300*300

Product Feature

Numerical control system adopts Siemens, Fanuc,GSK system, domestic famous ball screw and high-precision screw bearing.

Adopt high-precision spindle bearing group and spindle with precise assembly and dynamic balance test to ensure high precision, low noise and strong rigidity.

The forced automatic lubrication device is used for fixed point quantitative lubrication of screw and guide rail at each lubrication point. When there is abnormal state or insufficient oil, warning signals will be automatically generated. Domestic manual 3 jaw self centering chuck is standard.
