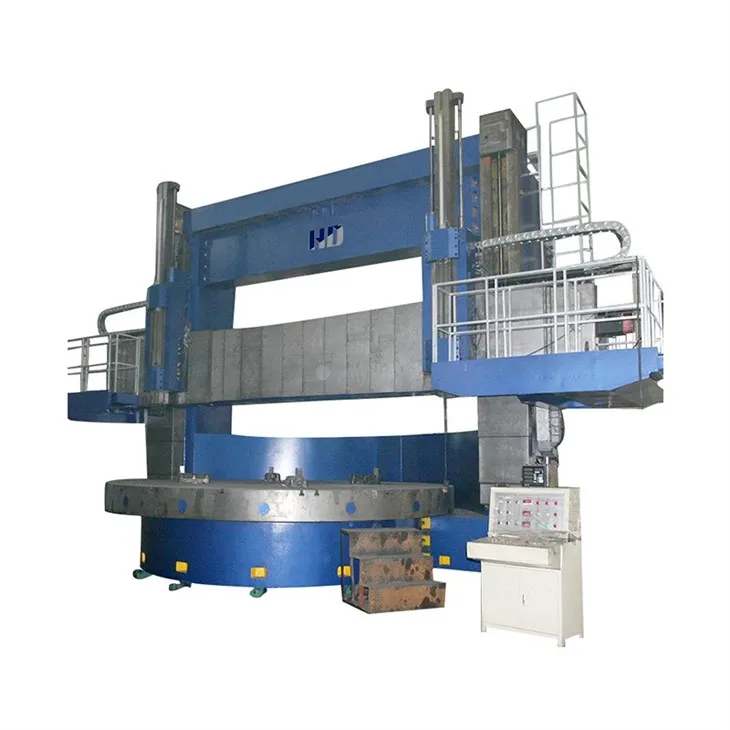

Model C5225/ C5232/ C5235/ C5240/ C5250/ C5263 double column vertical lathe is suitable for rough and fine machining of ferrous, non-ferrous metals and some non-metal parts with high-speed steel and hard alloy tools. It can process inner and outer cylindrical surfaces, end faces, inner and outer conical surfaces, and grooving.

Specification Parameter

Specification	Unit	C5225	C5232	C5235	C5240	C5250	C5263
Max. cutting diameter	mm	2500	3200	3500	4000	5000	6300
Max. cutting height	mm	1600/ 2500	1600/ 2500	1600/ 2000	1600/ 2500	2000/ 3150	3150/ 4000
Worktable diameter	mm	2250	2830	2830	2830/ 3600	4000/ 4500	4500/ 5700
Max. Loading weight	t	10/16/20	10/16/20	20	20/32/50	32/50	50/100
Worktable max. torque	kn.m	63	63	63	63	70	100
Worktable speed range	rpm	2-63	2-63	2-63	0.5-40	0.5-40	0.5-38
Worktable step	step	16	16	16	16	16	16
Right tool post cutting force	kn	35	35	35	35	35/50	50/80
Tool post horizontal travel	mm	1400	1700	1900	2150	2765	3450
Tool post vertical travel	mm	1000/ 1400	1000/ 1250	1000/ 1250	1000/ 1400	1250/ 1600	1600/ 2000
Crossbeam travel	mm	1250/ 2150	1250/ 2150	1250/ 1650	1250/ 2150	1500/ 2650	2650/ 3500
Main motor	kw	55	55	55	55	55/75	75/110
Machine weight	t	32/34/36	39/42	40/43	43/45/48	60/65/70	118/178
Lathe dimension (LWH)	mm	518047004800	600048605000	640050505200	690052005700	920058005800	1150075009300

Product Feature

1. Advanced modular design, universal product, mature technology, stable accuracy and reliable quality.

2. Heavy and high grade castings made by own foundry, followed properly heat treatment.

3. Hardened guideway by extra-frequency induction machine(above HRC50). Sliding guideway. Combined with rollers on the cross rail.

4. PLC control made by OMRON Japan Fine layout and cabling in cabinet. Special careful selected components for super reliability.

5. Separate hydraulic station, easy to setup, daily maintenance and repair.

6. DRO and scales is standard.

7. Grounded gears in the gearbox to ensure high precision, low noise and long lifetime.

8. Two kinds of table guideway is available, i.e, dynamic static pressure and pure static pressure.

Main transmission mechanism

The main drive of the machine tool is a common AC motor, which is driven by gears to reduce speed, and the hydraulic cylinder drives the shift fork to push the gears to shift gears, so that the worktable can obtain the required speed.

The overall layout of the machine tool

This machine tool is composed of vertical column, main gearbox, worktable, beam lifting mechanism, left and right vertical tool posts, electrical system, hydraulic system, etc. The machine tool adopts a gantry type structure, that is, the two vertical columns are connected with the two sides of the worktable, the main gearbox is closed behind the worktable, the beam moves up and down on the vertical column guide rail, and the left vertical tool post and right vertical tool post are arranged on the beam, can do horizontal and vertical feed and rapid movement. The machine tool is equipped with a button station, and the main operations on the machine tool are concentrated on the button station.
