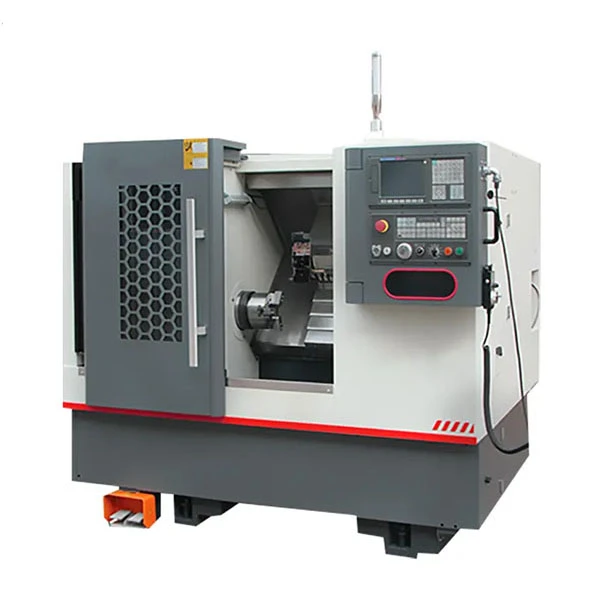

TCK6340 Slant Bed CNC Lathe

The TCK6340 slant bed lathe excels in precision machining of shaft and disk parts. Capable of turning diverse screw threads, arcs, cones, and internal/external planes, it handles ferrous and non - ferrous metals with high - speed chip removal. Ideal for automotive, motorcycle, electronics, and aerospace industries, it efficiently produces high - volume, high - precision components like engine shafts, turbine disks, and electronic device parts. Boasting a machining precision of level 7, it minimizes post - processing and waste. Its 45 - degree slant bed design ensures stability and smooth chip evacuation, while advanced controls enable accurate cutting, making it a reliable choice for complex machining tasks.

Send Inquiry

TCK Series Inclined Bed Cnc Lathe

Slant Bed Lathe CNC

Description

SPECIFICATIONS	Units	TCK6340
Swing over bed	mm	400
Swing over cross slide	mm	140
Spindle bore	mm	48
Spindle nose type	-	A2-5
Spindle speed steps	-	Stepless
Spindle speed range	rpm	3500
Turret/tool post	-	Gang type
Tool size	mm	20 x 20
X axis travel	mm	400
Z axis travel	mm	300
Main spindle motor	kw	3.7/5.5
Guide rail type	-	Linear rail
Total power capacity	KVA	9/11
Machine weight	kg	2200
Overall dimension	mm	2200* 1530*1780
Hydraulic tailstock quill taper	-	Mohs #5
Hydraulic tailstock travel	mm	80
Hydraulic tailstock quill traverse	mm	450
Guide rail type	-	Slant bed linear rail
Machine weight	kg	3000
Overall dimension	mm	260018502000

Standard Accessories:

Optional Accessories:

1,Taiwan higher accuracy linear guide ways
2,Taiwan ball screw
3,Hydraulic magazine
4,Taiwan hydraulic chuck
5,Hydraulic tailstock
6,Taiwan hollowed rotary cylinder
7,station hydraulic turret

1. NC System: KND1000Ti, Fanuc Oi Mate-T
2. Main Motor: Servo 11/15 KW
3. Turret: 8 station electric turre
4. Chuck: 8″Non-through hole hydraulic chuck
5. 8″Non-through hole hydraulic chuck (Taiwan)
6. 8″through hole hydraulic chuck(Taiwan)
7.10″Non-through hole hydraulic chuck
8. 10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
12.Inverter 11 KW

product feature

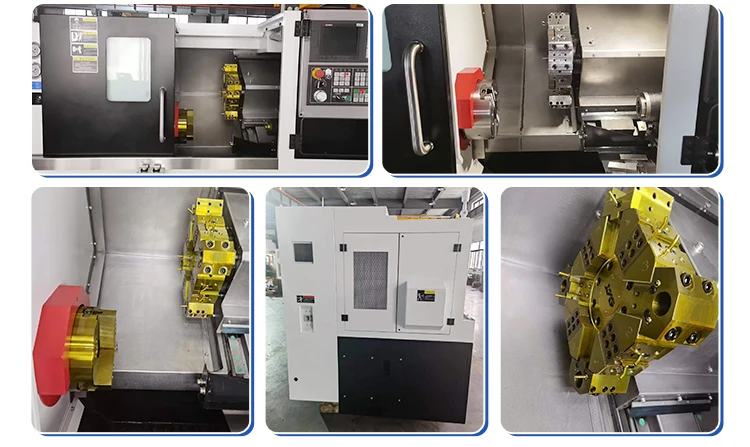

Product detail
