Model XH7126/ XH7136/ XH7145/ VMC850/ VMC1160/ VMC1370/ VMC1580 cnc vertical machining center can realize various complex parts such as disks, plates, shells, cams, molds, etc. One-time clamping, complete drilling, milling, boring, expanding, reaming, tapping and other processes, suitable for the production of multi-variety, small and medium-sized products, and can show its superiority for the processing of complex and high-precision parts; It is suitable for efficient and high-precision automatic processing of small and medium-sized parts in teaching, aerospace, military and national defense, automobiles and motorcycles, construction machinery, refrigeration petrochemicals, rolling stock and other industries.
Specification Parameter
|
Specification |
Unit |
XH7126 |
XH7136 |
XH7145 |
|
X axis travel |
mm |
450 |
900 |
600 |
|
Y axis travel |
mm |
320 |
360 |
450 |
|
Z axis travel |
mm |
420 |
480 |
500 |
|
Max. spindle speed |
rpm |
6000 |
8000 |
8000 |
|
Spindle motor power |
kw |
3.7/5.5 |
5.5 |
5.5/7.5 |
|
Spindle taper |
BT40 |
BT40 |
BT40 |
|
|
Worktable size |
mm |
800*260 |
1250*360 |
800*450 |
|
Worktable bearing |
kg |
200 |
400 |
500 |
|
Rapid traverse speed (x/y/z) |
m/min |
15/15/15 |
10/10/8 |
24/24/18 |
|
Feed speed |
mm/min |
1-6000 |
1-6000 |
1-10000 |
|
Positioning accuracy |
mm |
±0.008 |
0.02 |
±0.008 |
|
Repeatability |
mm |
±0.006 |
0.01 |
±0.005 |
|
Tool changer |
16 discs type |
16 discs type |
16 discs type |
|
|
Dimension size |
mm |
2100*1759*1960 |
3060*2337*1960 |
2321*2110*1892 |
|
Machine weight |
kg |
2500 |
3800 |
4200 |
|
Items |
Unit |
VMC855 |
VMC1160 |
VMC1370 |
VMC1680 |
|
X/Y /Z axis travel |
mm |
800/550/550 |
1100/600/600 |
1370/700/700 |
1600/800/700 |
|
The distance from spindle nose end to worktable |
mm |
120-670 |
100-700 |
160-860 |
140-840 |
|
The distance from spindle center to column guide |
mm |
595 |
655 |
783 |
937 |
|
Workable size(L*W) |
mm |
1000*500 |
1200*600 |
1400/1500*700 |
1700*800 |
|
Max. Worktable loading |
kg |
600 |
800 |
1400 |
1800 |
|
T-slot(No.-W×D) |
No./mm |
5-18*90 |
5-18*100 |
18.5*150*50 |
5-18*125 |
|
Spindle taper |
mm |
BT40 |
BT40 |
BT40/BT50 |
BT50 |
|
Max speed of spindle |
rpm |
8000 |
8000 |
8000/6000 |
8000 |
|
Spindle drive mode |
Belt type |
Belt type |
Belt type |
Belt type |
|
|
X/Y/Z rapid speed |
m/min |
36/36/24 |
30/30/24 |
24/24/24 |
20/20/20 |
|
Max. Cutting feed speed range |
mm/min |
10000 |
10000 |
10000 |
10000 |
|
Tool magazine capacity |
tools |
24 |
24 |
24 |
24 |
|
Max weight of tool |
kg |
8 |
8 |
8/15 |
15 |
|
Tool changing time |
sec |
2 |
2 |
2/4 |
4 |
|
Spindle motor power |
kw |
7.5/11 |
11/15 |
11/15 |
15/18.5 |
|
X/Y/Z axis position accuracy |
mm |
±0.006 |
±0.006 |
±0.006 |
±0.006 |
|
X/Y/Z axis repeat position accuracy |
mm |
±0.004 |
±0.004 |
±0.004 |
±0.004 |
|
Machine size(L×W*H) |
mm |
2600*2400*2550 |
3300*2500*2700 |
3729*2435*3020 |
3924*2658*3020 |
|
Machine weight |
T |
5.5 |
7.5 |
9/11 |
13 |

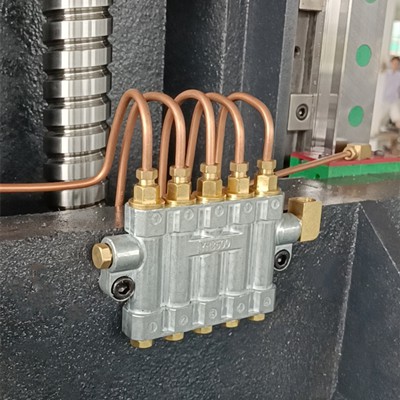

Detail Display
