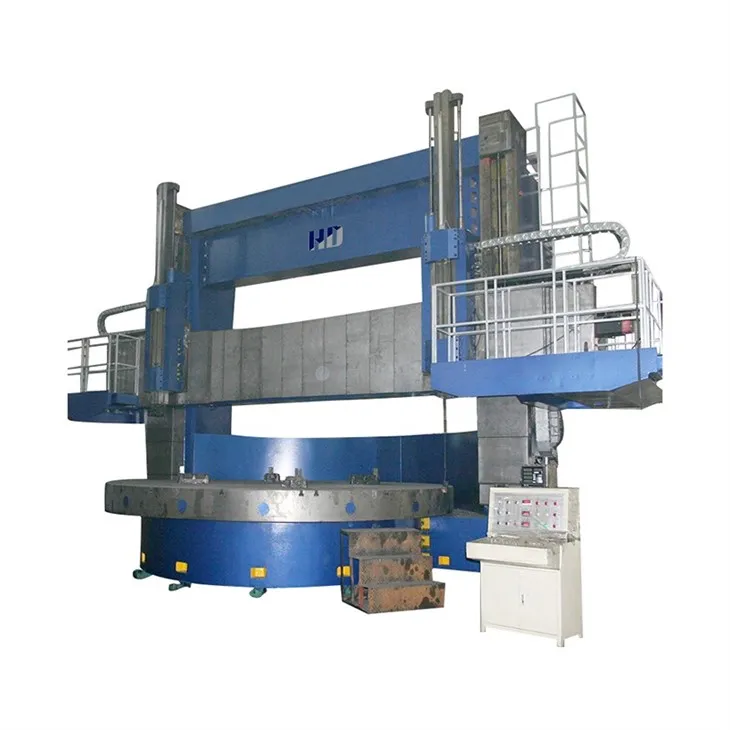

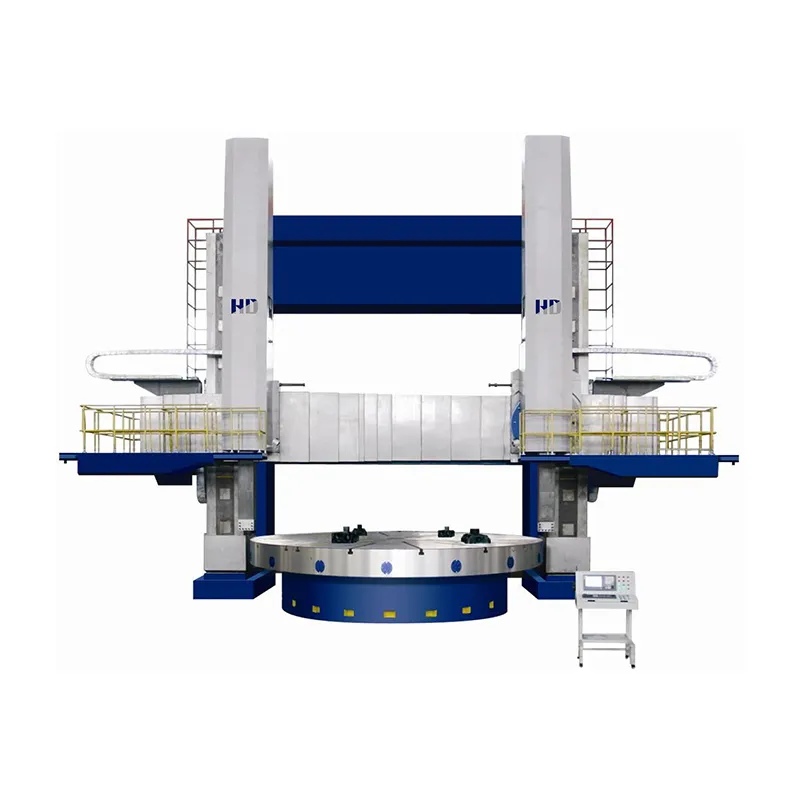

Model CK5225/ CK5232/ CK5235/ CK5240/ CK5250/ CK5263 CNC double column vertical lathe is suitable for rough and fine machining of ferrous, non-ferrous metals and some non-metal parts with high-speed steel and cemented carbide tools. It can process internal and external cylindrical surfaces, end surfaces, internal and external conical surfaces, and grooving.

Specification Parameter

Specification	Unit	CK5225	CK5232	CK5235	CK5240	CK5250	CK5263
Max.cutting diameter	mm	2500	3200	3500	4000	5000	6300
Max.cutting height	mm	1600/2500	1600/2500	1600/2500	1600/2500	2500/3150	3150/4000
Worktable diameter	mm	2250	2830	2830	3200/3600	4000/5000	5000/5700
Max.loading weight	T	10/20	10/20	10/16/20	20/32	32/50	60/80
Max.worktable torque	N. m	63000	63000	63000	63000	100000	100000/ 150000
Worktable speed range	rpm	2-63	2-63	2-63	0.5-40	0.5-40	0.5-38
Worktable step range	4 gears shift stepless / 2 gears shift stepless
Right tool post cutting force	Kn	35	35	35	35	35/50	50/80
Left tool post cutting force	Kn	28	28	28	28	28/40	40/70
Tool post horizontal travel	mm	1400	1700	1900	2150	2765	3450
Tool post vertical travel	mm	1000/1250/1400	1000/1250	1000/1250	1000/1400	1400/1600	1600/2000
Main motor	kw	55	55	55	55	AC55/75	90/110
Tool post rapid speed	mm/ min	2000
Crossbeam speed	mm/ min	380
Machining precision		IT7
Machine weight	t	32/36	37/41	39/43	45/48	60/70	127/178
Overall dimension	mm	518047004800	631049506245	661051006245	690052006600	920058007700	1150075009300

Structure Introduction

The beam is placed in front of the column, driven by a dual-shaft extension AC motor, and driven by gears, worm gears, and lead screws to make the beam move vertically on the column. There are 4 hydraulic clamping points behind the beam. The sliding surface of the beam and the column is treated with a wear-resistant soft belt.

Hydraulic balance of left & right tool post ram

The hydraulic balance of the left & right tool post ram consists of one-way valve, overflow valve, and accumulator, and the balance pressure can be adjusted appropriately through the overflow valve to ensure that the tension of the tool post ram is close when it rises or falls. The accumulator is a leather bag type, filled with nitrogen gas at pressure of 2.0MPa to compensate for pressure drop caused by special reasons in the balance system.

The lubrication of the gearbox and working table is supplied oil by the overflow oil of the overflow valve; The lubrication of the left and right tool posts and the lubrication of the crossbeam are provided by the automatic lubrication oil pump.

The recommended pressure for each regulating valve is: the alarm value of the low-pressure protection pressure relay in the static pressure system is 1.5MPa; The low-pressure protection of the guide rail oil chamber is set to 0.13MPa by the pressure controller; The working pressure for variable speed, balance, and clamping is 3.0MPa, adjusted by the overflow valve.

In order to ensure the cleanliness of the working oil and the safe and reliable operation of hydraulic components, the filters in the hydraulic system should be regularly cleaned and replaced. The hydraulic oil used for this machine tool is No. 46 hydraulic oil, the hydraulic station of this machine tool is connected to the base of the working table. When filling the hydraulic station with oil, due to the storage of oil in the hydraulic pipeline, hydraulic oil should be supplemented appropriately based on the decrease in liquid level after the first use of the machine tool.
