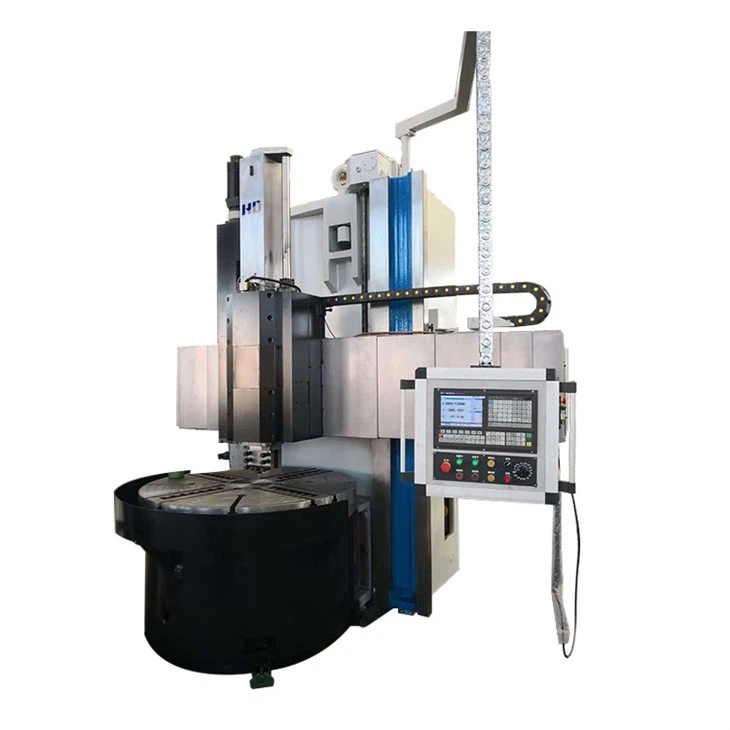

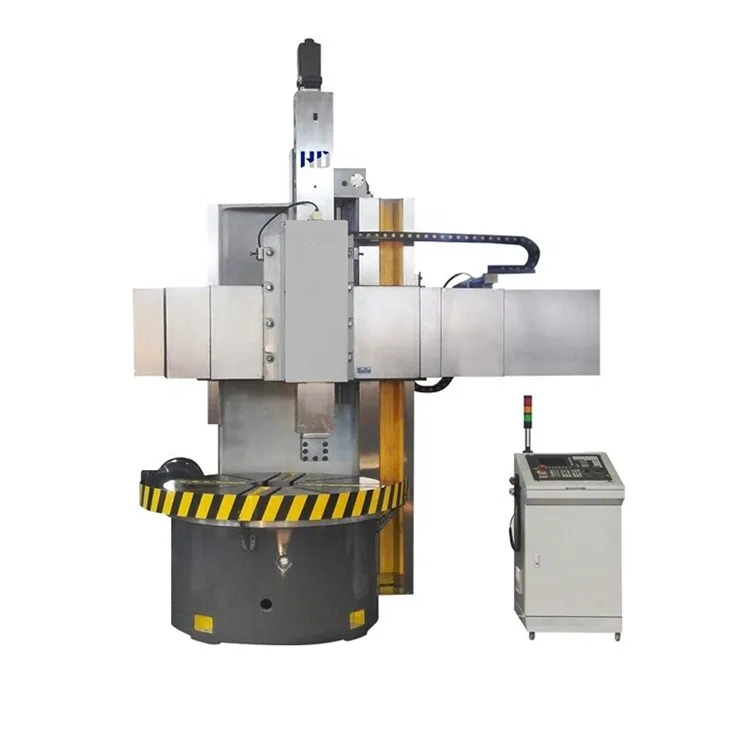

Model CK5112/ CK5116/ CK5120, CK5123/ CK5126 CNC single column vertical lathe is used for machining kinds of the ferrous & nonferrous metal and some non-metal materials with hard alloy cutter, high capability and high speed steel cutters. Through programs, below processing can be finished:
1) Turning inside and outside cylindrical surface
2) Turning flat surface, inner & outer conical surface and inner & outer step surface.
3) Arc curved surface processing, grooving & cutting, chamfer and round corner, R chamfer.

Specification Parameter

Specification	Unit	CK5112	CK5116	CK5120	CK5123	CK5126
Max.cutting diameter	mm	1250	1600	2000	2300	2600
Max.cutting height	mm	1000/1200	1000/1400	1250	1350	1600/2000
Max.loading weight	T	3.2	5	8	8	10
Worktable diameter	mm	1000	1400	1800	2000	2250
Worktable speed range	rpm	6.3-200	5-160	3.2-100	3.2-100	2-63
Worktable step range		4 gears shift stepless / 2 gears shift stepless
Max.worktable torque	N.m	25000	32000	32000	32000	35000
Vertical tool post cutting force	N	20000	25000	25000	25000	25000
Vertical tool post vertical travel	mm	650	800	800	800/1000	800/1000
Vertical tool post horizontal travel	mm	700	1050	1190	1320	1500
Crossbeam travel	mm	650/850	650/1050	850	1000	1200/1600
Beam lifting speed	mm/min	440
Positioning precision	mm	0.03
Repositioning accuracy	mm	0.015
Main motor	kw	22	30	30	30	37
Machine weight	t	8.5/9.5	12.4/18	17	18	24/26
Dimension(LWH)	mm	236022802800	283026703010	320028003250	321028503300	330040003500

Product Feature

1. High grade casting from own foundry following by proper heat treatment. Hardened guideway (above HRC50). Perfect long lifetime and stable accuracy.

2. Auto central lubrication system with regular intervals and volume.

3. Grounded gears in the gearbox to ensure high precision, low noise and long lifetime.

4. Complete accessories and good service. Just start production immediately after setup .

5. Many options, such as German MECANO panel box, electrical tool turret, hydrostatic table, cooling refrigerant for hydraulic oil, closed-loop controls with scales, semi-protection cover and chip conveyor etc.

Foundation instructions

Firmness of foundation effects directly basic accuracy of machine tool, so the foundation should meet below requirements:

a) In order to eliminate vibration during operation, the foundation shall be hard soil without subsidence or distortion, and shall be protective against penetration of groundwater.

b) The foundation shall have no crack, and shall have adequate firmness.

c) The foundation shall be constructed according to the foundation drawings, depth of foundation shall be determined by local soil condition.
