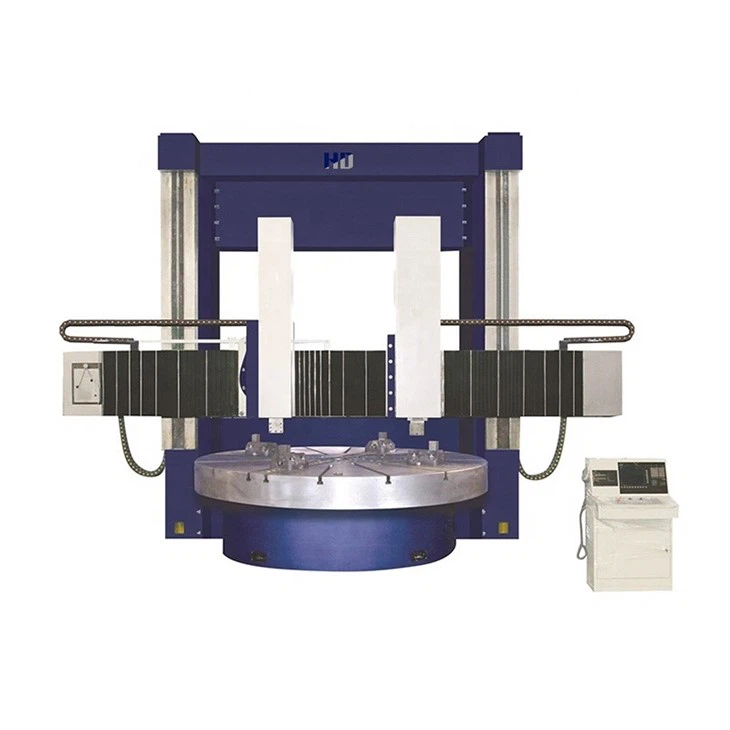

Model C5225/ C5232/ C5235/ C5240/ C5250/ C5263 double column vertical lathe is suitable for rough and fine machining of ferrous, non-ferrous metals and some non-metal parts with high-speed steel and hard alloy tools. It can process inner and outer cylindrical surfaces, end faces, inner and outer conical surfaces, and grooving.

Specification Parameter

Specification	Unit	C5225	C5232	C5235	C5240	C5250	C5263
Max. cutting diameter	mm	2500	3200	3500	4000	5000	6300
Max. cutting height	mm	1600/ 2500	1600/ 2500	1600/ 2000	1600/ 2500	2000/ 3150	3150/ 4000
Worktable diameter	mm	2250	2830	2830	2830/ 3600	4000/ 4500	4500/ 5700
Max. Loading weight	t	10/16/20	10/16/20	20	20/32/50	32/50	50/100
Worktable max. torque	kn.m	63	63	63	63	70	100
Worktable speed range	rpm	2-63	2-63	2-63	0.5-40	0.5-40	0.5-38
Worktable step	step	16	16	16	16	16	16
Right tool post cutting force	kn	35	35	35	35	35/50	50/80
Left tool post cutting force	kn	28	28	28	28	28/40	40/70
Tool post horizontal travel	mm	1400	1700	1900	2150	2765	3450
Tool post vertical travel	mm	1000/ 1400	1000/ 1250	1000/ 1250	1000/ 1400	1250/ 1600	1600/ 2000
Main motor	kw	55	55	55	55	55/75	75/110
Machine weight	t	32/34/36	39/42	40/43	43/45/48	60/65/70	118/178
Lathe dimension (LWH)	mm	518047004800	600048605000	640050505200	690052005700	920058005800	1150075009300

Lathe machine introduction

Introduction of double column vertical lathe

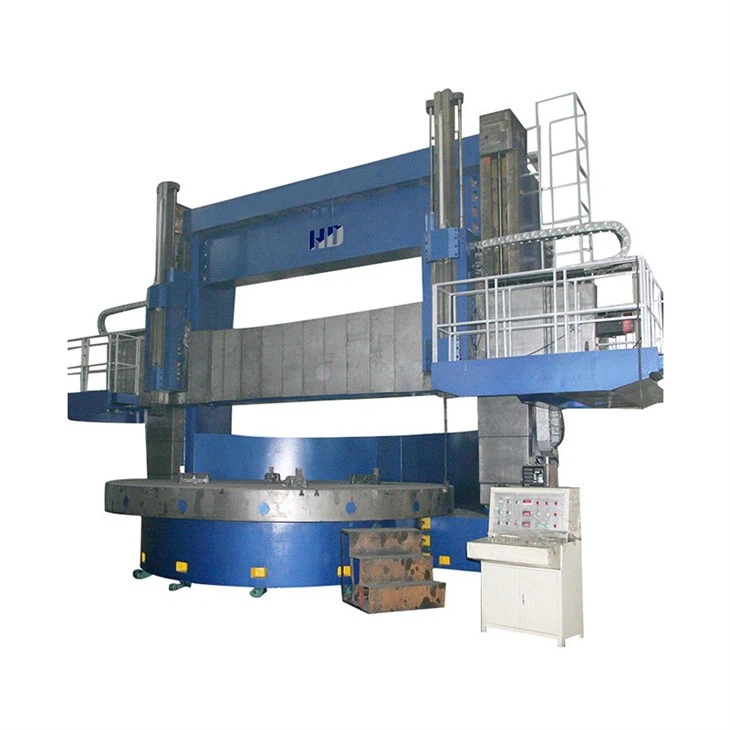

The gantry is composed of left and right vertical columns and connecting beam, which are connected with the base of the worktable to form a thermally symmetrical structure. The left and right vertical columns are made of high-strength, low-stress cast iron as a whole. Gear wheel worm gear worm rod transmission box are installed on the upper ends of the left and right vertical columns, driven by the double-shaft AC motor on the middle beam, and driven by the nut to the trapezoidal screw pair (double screw rods) to drive the beam to move up and down on the vertical column guide rail.

A fixed steel straight ladder is installed on one side vertical column, and a protective fence is installed on the top of the gantry, which is convenient for maintenance personnel to climb, detect and maintain, and at the same time protect the personal safety of maintenance personnel.

The working pressure of the hydraulic system is adjusted to 2.8MPa by the main overflow valve. In order to ensure the balance of the left vertical tool post, the system is equipped with one-way valve, liquid control one-way valve and accumulator. The overflow valve is used to balance the overflow cylinder when the vertical tool post moves downwards, which is adjusted to the less overflow when the tool post is not moving, and generally adjusted to 2.5MPa. The pressure relay is used for the overpressure protection of the balance system, and its action pressure is generally adjusted to 4.0MPa. The balance system principle of the right tool post is the same as above. The overflow oil of the main overflow valve in the system is used for the lubrication of each part of the machine tool. In them, the pressure of the lubricating oil leading to the closing groove of the working table guide rail is adjusted to 0.5MPa by the pressure valve. The pressure relay is also provided in the lubricating oil road of the working table closing groove to prevent the damage the table guide rail due to insufficient lubrication pressure.

The hydraulic system of double column vertical lathe consists of the following parts: main transmission speed-changing system; hydraulic balance of left and right tool post ram; beam clamp and relaxation; Table dynamic pressure guide rail system; lubrication of gearbox and working table.

Characteristics of double column vertical lathe

1. High machining accuracy: The vertical lathe adopts a vertical structure, which ensures stable workpieces and enables high-precision machining.

2. High production efficiency: Vertical lathes have the characteristics of fast positioning and high-speed feed, which can greatly improve turning efficiency.

3. Diverse types of workpieces: Vertical lathes can process workpieces of various shapes, suitable for processing different types of workpieces such as passive axes and movable axes.

4. Able to complete multiple processes at once: The vertical lathe can use a multi tool changing platform to complete concurrent processing of multiple tools, improving the machining efficiency of workpieces.

Application fields of double column vertical lathe

Vertical lathes are widely used in aviation, automotive, mechanical, chemical, electronic, medical and other fields, and can be used to process various materials such as metal, wood, ceramics, plastics, etc.

In the aviation industry, vertical lathes are mainly used for machining components such as aircraft engine sleeves, intake ducts, and turbine blades; In the automotive industry, vertical lathes are mainly used for processing automotive bearing seats, crankshafts, cylinder blocks, and other components; In the field of mechanical manufacturing, vertical lathes are used to machine various cutting tools, shafts, gears, pistons, and other components.

In short, vertical lathes have become an indispensable equipment in modern manufacturing due to their efficient and stable processing capabilities.

Characteristic
·This machine tool consists of a frame structure consisting of left and right columns, a top beam, and a worktable base. It has strong rigidity and can withstand large cutting loads.
·The crossbeam moves up and down along the column guide rail, and is clamped on the column by a disc spring through a lever. The control button for lifting the crossbeam is located on the suspension button station, and there is a micro motion mechanism on the crossbeam to adjust its horizontal position.
·Two vertical knife holders on the left and right are mounted on the crossbeam, and there are handles for manually operating the knife holders on the crossbeam to facilitate adjusting the position and alignment of the knife holders. The weight of the slider is balanced by pressure oil. There are two unloading rollers installed on the upper part of the tool holder slide, and the bearing capacity of the unloading rollers can be adjusted by turning the screws at the upper end, in order to reduce the force during manual operation.
·The workbench is directly started and braked by the main motor through the gearbox. The speed of each level is driven by the transmission cylinder inside the gearbox to exchange gears, achieving sixteen different speed changes. The speed change selection switch is located on the suspension button station.
·The workbench is embedded with zinc aluminum copper alloy wear-resistant guide plates, and pressure oil (0.2-04Mpa) is introduced between the guide rails to improve their load-bearing capacity. The worktable spindle is equipped with a one-way thrust ball bearing and a double row short cylindrical roller bearing to ensure that the spindle can work smoothly with high precision.
·There is a lubricating hand pressure oil pump installed on each of the crossbeam and left and right knife holders for easy lubrication by the operator· The electrical control adopts PLC programmable controller control.
