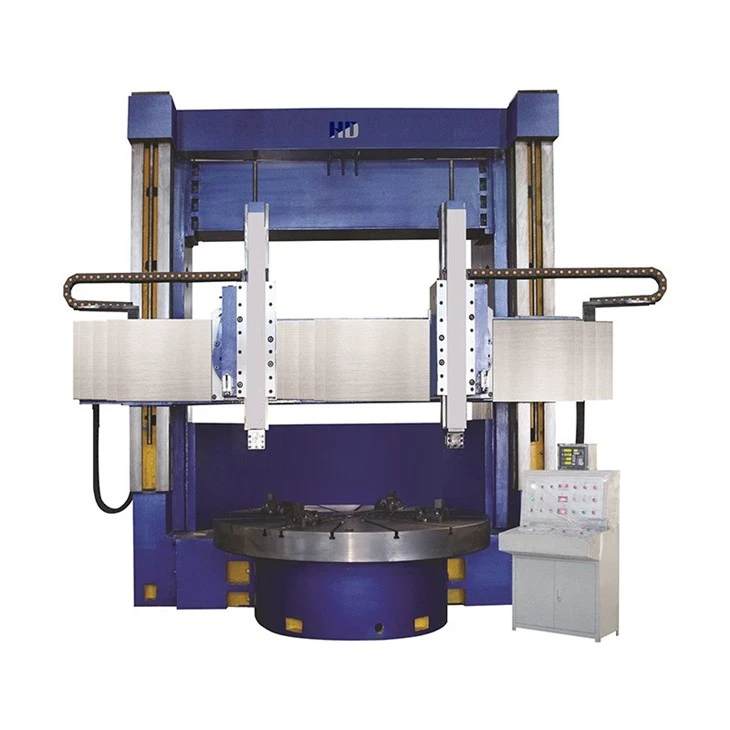

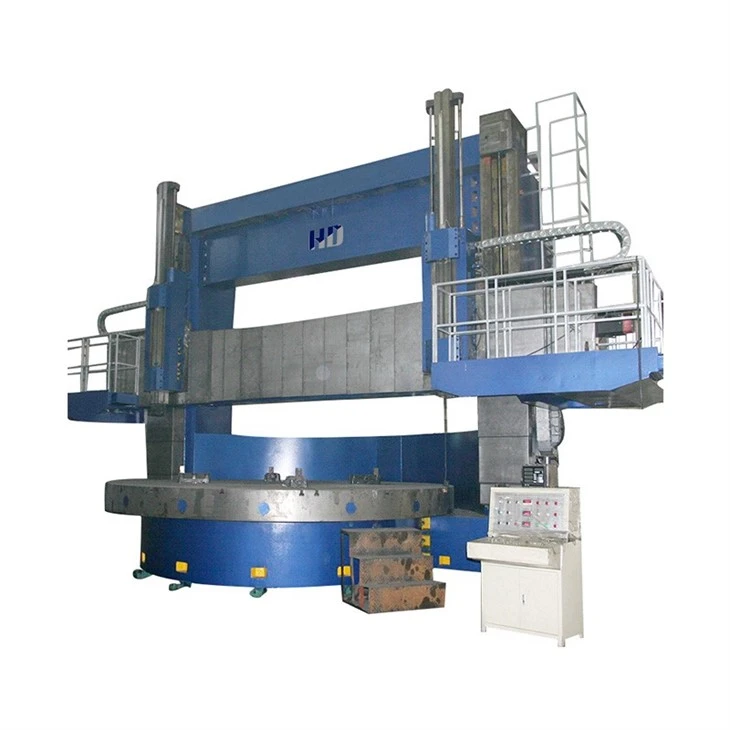

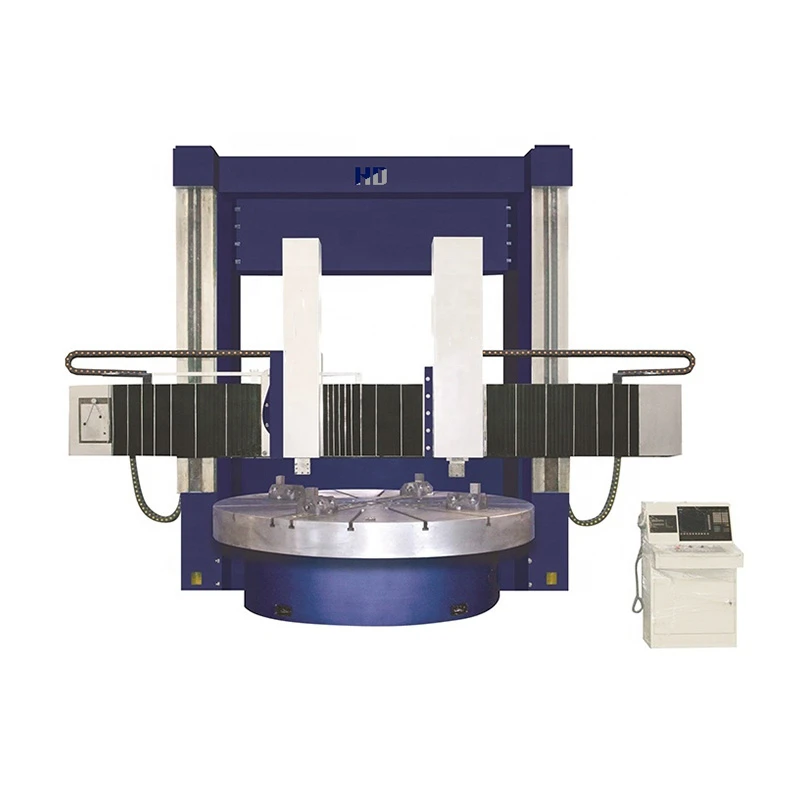

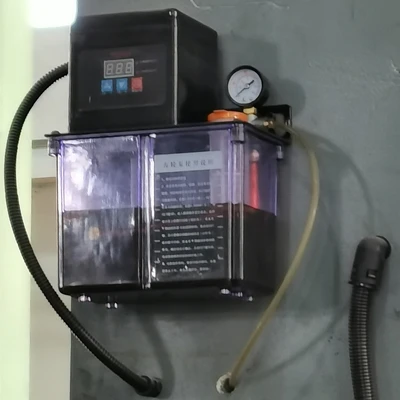

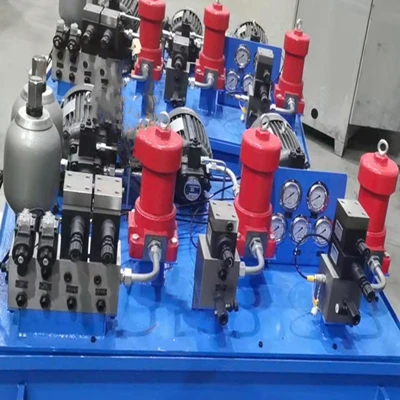

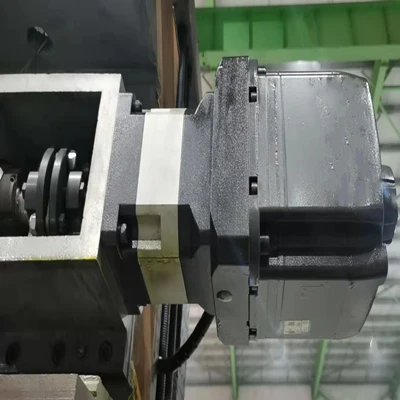

Model C5225/ C5232/ C5235/ C5240/ C5250/ C5263 lathe machine is a double-column vertical lathe, in which the left and right tool posts are programming tool posts. The machine tool consists of main parts such as gantry, worktable, gearbox, beam, vertical tool post, electrical and hydraulic system.

Specification Parameter

Specification	Unit	C5225	C5232	C5235	C5240	C5250	C5263
Max. cutting diameter	mm	2500	3200	3500	4000	5000	6300
Max. cutting height	mm	1600/ 2500	1600/ 2500	1600/ 2000	1600/ 2500	2000/ 3150	3150/ 4000
Worktable diameter	mm	2250	2830	2830	2830/ 3600	4000/ 4500	4500/ 5700
Max. Loading weight	t	10/16/20	10/16/20	20	20/32/50	32/50	50/100
Worktable max. torque	kn.m	63	63	63	63	70	100
Worktable speed range	rpm	2-63	2-63	2-63	0.5-40	0.5-40	0.5-38
Worktable step	step	16	16	16	16	16	16
Tool post horizontal travel	mm	1400	1700	1900	2150	2765	3450
Tool post vertical travel	mm	1000/ 1400	1000/ 1250	1000/ 1250	1000/ 1400	1250/ 1600	1600/ 2000
Crossbeam travel	mm	1250/ 2150	1250/ 2150	1250/ 1650	1250/ 2150	1500/ 2650	2650/ 3500
Main motor	kw	55	55	55	55	55/75	75/110
Machine weight	t	32/34/36	39/42	40/43	43/45/48	60/65/70	118/178
Lathe dimension (LWH)	mm	518047004800	600048605000	640050505200	690052005700	920058005800	1150075009300

Product Feature

1. This vertical lathe machine is suitable for rough and fine machining of ferrous, non-ferrous metals and some non-metal parts with high-speed steel and hard alloy tools. It can process inner and outer cylindrical surfaces, end faces, inner and outer conical surfaces, and grooving.

2. The left upright column, right upright column, connecting beam, working table, etc. form a closed symmetrical frame. The crossbeam is driven by the lifting motor, gear box, and lead screw to move up and down on the column guide rail. The main drive of the worktable is driven by a AC motor and reduced by gears to make the worktable obtain the corresponding working speed, and the gearbox has reliable performance.

3. This machine tool is composed of vertical column, main gearbox, worktable, beam lifting mechanism, left and right vertical tool posts, electrical system, hydraulic system, etc. The machine tool adopts a gantry type structure, that is, the two vertical columns are connected with the two sides of the worktable, the main gearbox is closed behind the worktable, the beam moves up and down on the vertical column guide rail, and the left vertical tool post and right vertical tool post are arranged on the beam, can do horizontal and vertical feed and rapid movement.

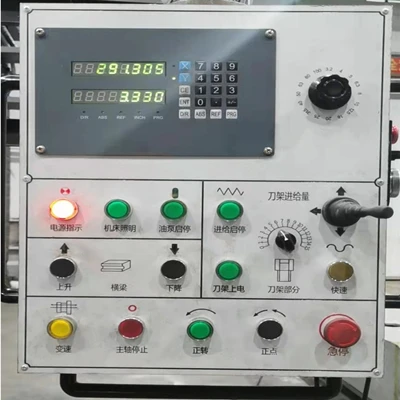

4. The machine tool is equipped with a button station, and the main operations on the machine tool are concentrated on the button station.

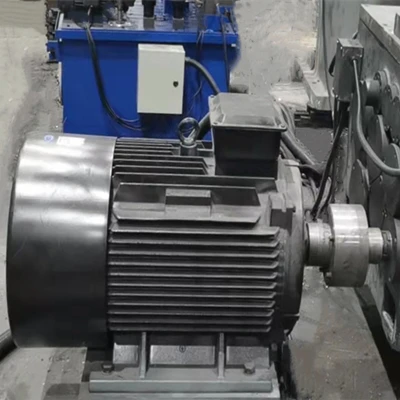

5. The main drive of the machine tool is a common AC motor, which is driven by gears to reduce speed, and the hydraulic cylinder drives the shift fork to push the gears to shift gears, so that the worktable can obtain the required speed.
